Fuses, Circuit Breakers and Relays

E66097-UN-25JUN12

E66098-UN-25JUN12

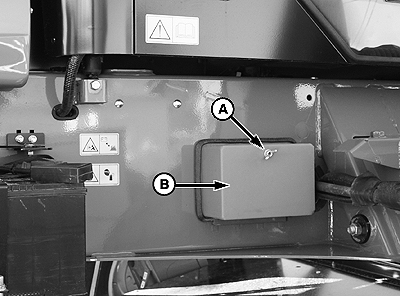

A - Fuse Box Cover Wing Nut

B - Fuse Box

C - Retaining Channel

Fuses, circuit breakers and relays are located inside the fuse box that is mounted on the frame right side of the W110 and under the right cab-forward side platform of the W150.

The circuit breakers automatically reset and the fuses are the plastic blade type.

Access the fuses and breakers as follows:

Stop engine and remove key.

Move right cab-forward side platform rearward on the W150. The box is mounted in the open on the W110..

Remove wing nut (A) and remove cover (B).

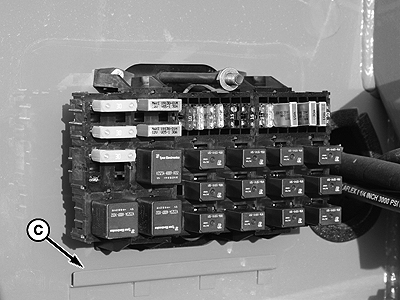

To replace fuses, circuit breakers or relays, pull out of receptacle and replace with new.

Replace the cover by placing the bottom of the cover into the retaining channel (C) and then securing the wing nut.

IMPORTANT: Confirm that the bottom of the box is in the retaining channel before securing with the wing nut.
