Hydraulic Fittings

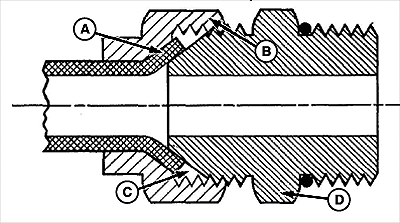

E64585-UN-11MAY12
A - Flare
B - Nut
C - Flareseat
D - Body
Types of hydraulic fittings used on W110 and W150 Windrowers.Flare Type Hydraulic Fittings
|
SAE NO. |
TUBE SIZE O.D. (in.) |
THD SIZE (in.) |
NUT SIZE ACROSS FLATS (in.) |
TORQUE VALUE * |
RECOMMENDED TURNS TO TIGHTEN (AFTER FINGER TIGHTENING) |
|||
|
lb.-ft. |
N·m |
FLATS |
TURNS |
|||||
|
3 |
3/16 |
3/8 |
7/16 |
6 |
8 |
1 |
1/6 |
|
|
4 |
1/4 |
7/16 |
9/16 |
9 |
12 |
1 |
1/6 |
|
|
5 |
5/16 |
1/2 |
5/8 |
12 |
16 |
1 |
1/6 |
|
|
6 |
3/8 |
9/16 |
11/16 |
18 |
24 |
1 |
1/6 |
|
|
8 |
1/2 |
3/4 |
7/8 |
34 |
46 |
1 |
1/6 |
|
|
10 |
5/8 |
7/8 |
1 |
46 |
62 |
1 |
1/6 |
|
|
12 |
3/4 |
1-1/16 |
1-1/4 |
75 |
102 |
3/4 |
1/8 |
|
|
14 |
7/8 |
1-3/8 |
1-3/8 |
90 |
122 |
3/4 |
1/8 |
|
|
16 |
1 |
1-5/16 |
1-1/2 |
105 |
142 |
3/4 |
1/8 |
|
NOTE: Torque values shown are based on lubricated connections as in re-assembly.
a. Check flare and flare seat for defects that might cause leakage.
b. Align tube with fitting before tightening.
c. Lubricate connection and hand-tighten swivel nut until snug.
d. To prevent twisting the tube(s), use two wrenches. Place one wrench on the connector body and with the second, tighten the swivel nut to the torque shown.

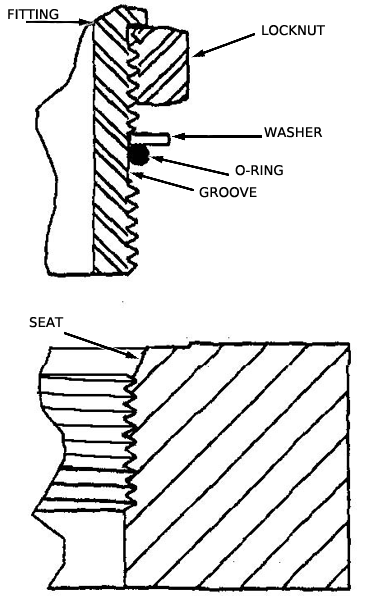

E64586-UN-14MAY12

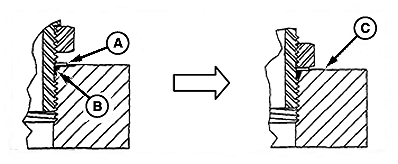

E64587-UN-11MAY12
A - Washer
B - Groove
C - Part Face
O-Ring Boss (ORB) Hydraulic Fittings
|
SAE NO. |
THD SIZE (in.) |
NUT SIZE ACROSS FLATS (in.) |
TORQUE VALUE * |
RECOMMENDED TURNS TO TIGHTEN (AFTER FINGER TIGHTENING) |
|||
|
lb.-ft. |
N·m |
FLATS |
TURNS |
||||
|
3 |
3/8 |
7/16 |
6 |
8 |
1 |
1/6 |
|
|
4 |
7/16 |
9/16 |
9 |
12 |
1 |
1/6 |
|
|
5 |
1/2 |
5/8 |
12 |
16 |
1 |
1/6 |
|
|
6 |
9/16 |
11/16 |
18 |
24 |
1 |
1/6 |
|
|
8 |
3/4 |
7/8 |
34 |
46 |
1 |
1/6 |
|
|
10 |
7/8 |
1 |
46 |
62 |
1 |
1/6 |
|
|
12 |
1-1/16 |
1-1/4 |
75 |
102 |
3/4 |
1/8 |
|
|
14 |
1-3/8 |
1-3/8 |
90 |
122 |
3/4 |
1/8 |
|
|
16 |
1-5/16 |
1-1/2 |
105 |
142 |
3/4 |
1/8 |
|
|
20 |
1-5/8 |
1-7/8 |
140 |
190 |
3/4 |
1/8 |
|
|
24 |
1-7/8 |
2-1/8 |
160 |
217 |
1/2 |
1/12 |
|
NOTE: Torque values shown are based on lubricated connections as in re-assembly.
a. Inspect O-ring and seat for dirt or obvious defects.
b. On angle fittings, back off the lock nut until washer (A) bottoms out at top of groove (B) in fitting.
c. Hand-tighten fitting until back up washer (A) or washer face (if straight fitting) bottoms on part face (C) and O-ring is seated.
d. Position angle fittings by unscrewing no more than one turn.
e. Tighten straight fittings to torque shown.
f. Tighten angle fittings to torque shown in the following table, while holding body of fitting with a wrench.

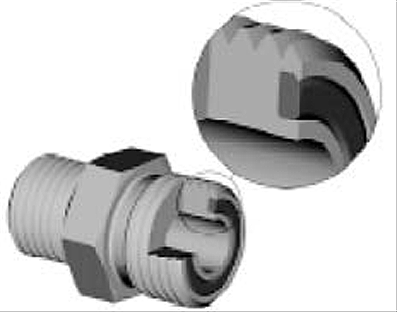

E61530-UN-11MAY12

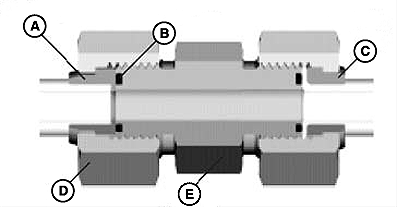

E64588-UN-11MAY12

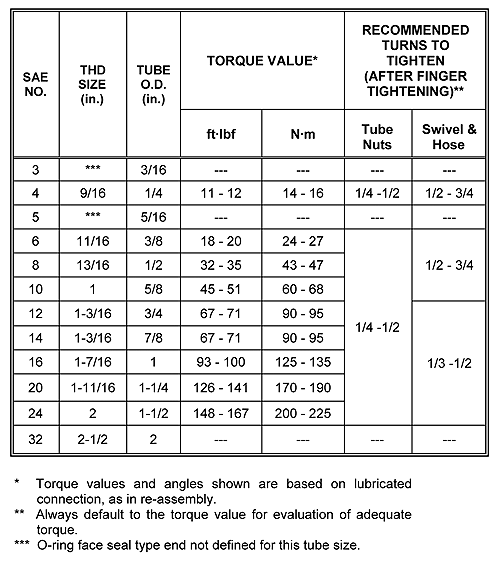

E64591-UN-11MAY12
A - Brazed Sleeve
B - O-Ring
C - Two Piece Sleeve
D - Nut
E - Fitting Body
O-Ring Face Seal (ORFS) Hydraulic Fittingsa. Check components to ensure that the sealing surfaces and fitting threads are free of burrs, nicks, and scratches or any foreign material.
b. Apply lubricant (typically petroleum jelly) to O-ring and threads. If O-ring is not already installed, install O-ring. Align the tube or hose assembly.
c. Ensure that flat face of the mating flange comes in full contact with O-ring.
d. Thread tube or hose nut until hand-tight. The nut should turn freely until it is bottomed out. Torque fitting further to the specified number of F.F.F.T (Flats From Finger Tight), or to a given torque value in the table shown in the opposite column.
NOTE: If available, always hold the hex on the fitting body to prevent unwanted rotation of fitting body and hose when tightening the fitting nut.
e. When assembling unions or two hosed together, three wrenches will be required.
|
RC48509,00005AA-19-20120911 |
