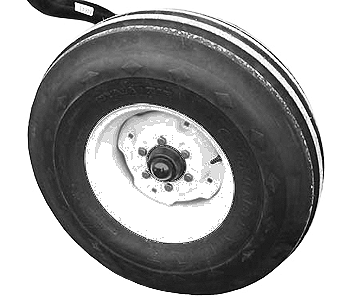

Checking Wheels

E62056-UN-04MAY12

IMPORTANT: Maintain proper torque on wheel hardware according to specifications.

Whenever a wheel is removed, check torque after every hour of operation. (field use) Thereafter, check torque every 50 hours until torque is maintained and stabilizes.

Item	Measurement	Specification
Front Wheel Nuts	Torque	300 N·m (220 lb.-ft.)
Rear Wheel Cap Screws	Torque	163 N·m (120 lb.-ft.)

If windrower is in road use after wheel installation check the torque every 15 minutes until torque stabilizes.
