Header Drop Rate

The header should lower gradually when the HEADER DOWN switch is pressed. From full height to ground should take approximately 3.5 seconds.

Adjust as follows:

  1. Lower the header to ground, stop engine and remove key.

  2. Move left cab-forward platform rearward.

  3. E63263
    E63263-UN-25JUN12

    W110

    E63261
    E63261-UN-25JUN12

    W150

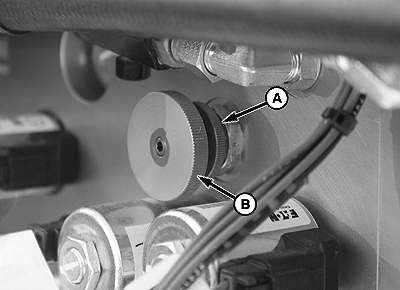

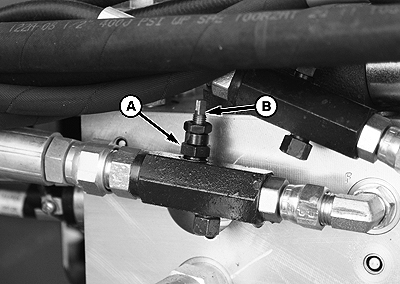

    Loosen jam nut (A) on needle valve and then turn adjustment knob (B).


  4. Tighten jam-nut (A).

  5. Close platform and engine compartment hood.

  6. Check drop rate and re-adjust as required.

RC48509,0000626-19-20120910
