Diagnostic Mode

W110

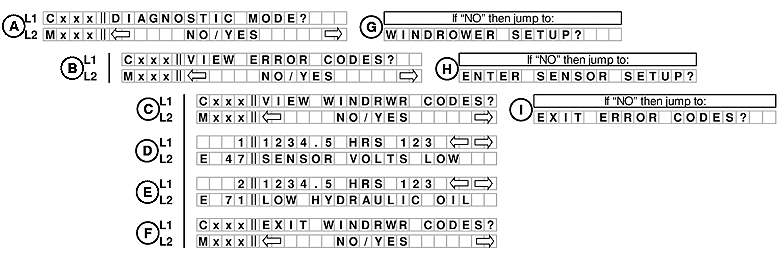

E68830-UN-26OCT12

If NO is selected from DIAGNOSTIC MODE? menu moves to WINDROWER SETUP? (G).

B. Line 1 - VIEW ERROR CODES?. Line 2 displays NO/YES option.

If NO is selected from VIEW ERROR CODES? menu moves to ENTER SENSOR SETUP? (H).

C. Line 1 - VIEW WINDRWR CODES?. Line 2 displays NO/YES option.

If NO is selected from VIEW WINDRWR CODES? menu moves to EXIT ERROR CODES? (I).

D.Line 1 - 1 1234.5 HRS 123. Line 2 displays E 47 SENSOR VOLTS LOW.

The last 10 distinct error codes are stored along with the code #. Exxx, engine hours and number occurrences. The arrow keys are used to cycle between codes.

E. Line 1 - 2 1234.5 HRS 123. Line 2 displays E 71 LOW HYDRAULIC OIL.

F. Line 1 - EXIT WINDRWR CODES?. Line 2 displays NO/YES option. If NO then menu scrolls to: Initial error code displayed.

W150

E68829-UN-26OCT12

A. Line 1 - DIAGNOSTIC MODE? Line 2 displays NO/YES option.

If NO is selected from DIAGNOSTIC MODE? menu moves to EXIT SETUP? (K).

B. Line 1 - VIEW ERROR CODES?. Line 2 displays NO/YES option.

If NO is selected from VIEW ERROR CODES? menu moves to ENTER SENSOR SETUP? (L).

C. Line 1 - VIEW WINDRWR CODES?. Line 2 displays NO/YES option.

If NO is selected from VIEW WINDRWR CODES? menu moves to EXIT ENGINE CODES? (M).

D.Line 1 - 1 1234.5 HRS 123. Line 2 displays E 47 SENSOR VOLTS LOW.

The last 10 distinct error codes are stored along with the code #. Exxx, engine hours and number occurrences. The arrow keys are used to cycle between codes.

E. Line 1 - 2 1230.5 HRS 123. Line 2 displays E 71 LOW HYDRAULIC OIL.

F. Line 1 - EXIT WINDRWR CODES?. Line 2 displays NO/YES option. If NO then menu scrolls to: Initial error code displayed.

G. Line 1 - VIEW ENGINE CODES?. Line 2 displays NO/YES option.

If NO is selected from VIEW ENGINE CODES? menu moves to EXIT ERROR CODES? (N).

H. Line 1 - 1 PREVIOUS ENG. CODES?. Line 2 displays ####S ##F ##C. The last 10 distinct error codes are stored.

I. Line 1 - EXIT ENGINE CODES?. Line 2 displays NO/YES option.

J. Line 1 - EXIT ERROR CODES?. Line 2 displays NO/YES option.

IF NO is selected from EXIT ERROR CODES? menu moves to VIEW WINDRWR CODES? (O).
