W110 Operating Screens

The CDM (Cab Display Module) provides information on functions for the engine, header and windrower.

Press button switches D or E to display or select the desired type of information to view or change.

Details on various information and operating modes are given in this section.

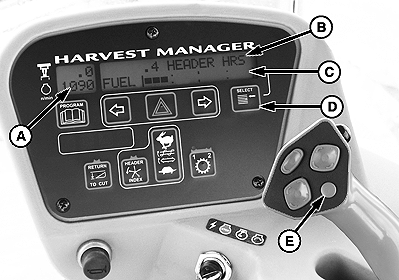

E60920-UN-02JUL12

A - Display

B - Upper Line

C - Lower Line

D - Lower Line Selector Switch

E - Upper Line Selector Switch

IGNITION ON / ENGINE NOT RUNNING
Display (Upper Line) 2 - 3 seconds	Description
HEADER DISENGAGED	Indicates HEADER DRIVE switch is OFF. Windrower can start.

ENGINE RUNNING - AT INITIAL START UP
Display (Upper Line) 2 - 3 seconds	Description
HEADER TYPE AND SIZE	Ignition start, engine running.
IN PARK	Indicates Ground Speed Lever (GSL) in N-DETENT on start up.

MISCELLANEOUS OPERATIONAL INFORMATION
Display (Upper Line)	Description
< LEFT TURN ▪	Indicates Left Turn when left turn arrow is pressed on CDM.
▪ RIGHT TURN >	Indicates Right Turn when right turn arrow is pressed on CDM.
▪ HAZARD ▪	Indicates Hazard Warning Lights are ON when Hazard switch is pressed on CDM.
ROAD GEAR	With High Range Selected On Console Switch.
HEADER ENGAGED	Header Drive Engaged. (Engine will not start)
CENTER STEERING	Center Steering Wheel and/or GSL not in N-DETENT.

ENGINE RUNNING / HEADER DISENGAGED
Scroll Through Display with Cab Display Module (CDM) or Ground Speed Lever (GSL) Switch
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# UNIT HRS	Total Windrower Operating Time
#####.# HEADER HRS	Displays total header operating time.
###.# SUB ACRES ###.# SUB HECTARES (If Metric)	Area cut since last reset. To reset : Display SUB ACRES on lower line and hold down program switch until display resets (5 - 7 seconds).
###### TOTAL ACRES ###### TOTAL HECT (If Metric)	Displays total area cut.
##.# HEADER HEIGHT	Distance setting (00.0 - 10.0) between cutterbar and ground.
##.# HEADER ANGLE (optional)	Angle setting (00.0 - 10.0) header relative to ground.
VOLTS	Engine electrical system operating voltage
FUEL | ▪▪▪▪ | ▪▪▪▪ |	Level of fuel in tank.
ENGINE TEMP ° F ENGINE TEMP ° C (If Metric)	Displays engine coolant temperature.
SCROLL Sub-Menu (Lower Line) ##.# HEADER HEIGHT FUEL | ▪▪▪▪ | ▪▪▪▪ | ENGINE TEMP ### ° F ENGINE TEMP ### ° C (If Metric)	Displays Sub-Menu after 2-3 seconds. Press SELECT to cancel. Scroll through Sub-Menu with CDM switch.
ROAD GEAR (Upper Line)	Ground speed range switch in high range.
ENGINE RUNNING / HEADER ENGAGED / AUGER HEADER
Scroll Through Display with CDM Switch or GSL Switch
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Total engine operating time.
#####.# UNIT HRS	Total windrower operating time.
#####.# HEADER HRS	Total header operating time.
##.# ACRES/HOUR ##.# HECTARES/HOUR	(If Metric)	Cutting rate in Acres / Hour. (Hectares)
##.# SUB ACRES ##.# SUB HECTARES	(If Metric)	Area cut since last reset.
###### TOTAL ACRES ###### TOTAL HECT	(If Metric)	Total area cut.
##.## REEL RPM ##.## REEL SENSOR	(Flashing)	Reel rotational speed.
##.# AUGER SPEED		Auger rotational speed.
#### KNIFE SPEED #### KNIFE SENSOR	(Flashing)	Knife speed in strokes per minute Sensor disabled.
##.# HEADER HEIGHT ##.# HEADER SENSOR	(Flashing)	Distance (00.0 - 10.0) between cutterbar and ground. Sensor disabled.
##.# HEADER ANGLE (optional) ##.# HEADER SENSOR	(Flashing)	Header angle (00.0 - 10.0) relative to ground. Sensor disabled
##.# VOLTS	Engine electrical system operating voltage.
FUEL | ▪▪▪▪ | ▪▪▪▪ |	Displays level of fuel in tank.
ENGINE TEMPERATURE ### ° F ENGINE TEMPERATURE ### ° C (If Metric)	Displays engine coolant temperature.
SCROLL Sub-Menu (Lower Line only) #### KNIFE SPEED ##.# AUGER SPEED ##.## REEL RPM (optional) ##.# HEADER HEIGHT	Displays Sub-Menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through Sub-Menu display with CDM switch.
ENGINE RUNNING / HEADER ENGAGED / DRAPER HEADER / INDEX SWITCH OFF
Scroll Through Display with CDM Switch or GSL Switch
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Total engine operating time.
#####.# UNIT HRS	Total windrower operating time.
#####.# HEADER HRS	Total header operating time.
##.# ACRES / HOUR ##.# HECTARES / HOUR	Actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (If Metric)	Area cut since last reset.
###### TOTAL ACRES ###### TOTAL HECT (If Metric)	Total area cut by machine. Reel peripheral speed in miles per hour. Reel speed in rpm.
##.## REEL MPH OR RPM (Optional) ##.## REEL KPH (If Metric) ##.## REEL SENSOR (If sensor disabled)
##.# DRAPER SPEED	Draper speed (0.0 - 10.0).
#### KNIFE SPEED (optional) #### KNIFE SENSOR (If sensor disabled)	Knife speed in strokes per minute. SPEED and SENSOR flash alternately.
##.# HEADER HEIGHT ##.# HEADER SENSOR (If sensor disabled)	Distance setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, HEIGHT and SENSOR flash alternately.
##.# HEADER ANGLE ##.# HEADER SENSOR (If sensor disabled)	Angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# VOLTS	Engine electrical system operating voltage.
FUEL | ▪▪▪▪ | ▪▪▪▪ |	Displays level of fuel in tank.
ENGINE TEMP ### ° F ENGINE TEMP ### ° C (If Metric)	Displays engine coolant temperature.
SCROLL Sub-Menu (Lower Line only) #### KNIFE SPEED (optional) ##.## REEL RPM ##.#DRAPER SPEED FUEL LEVEL | ▪▪▪▪ | ▪▪▪▪ |	Displays Sub-Menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through Sub-Menu display with CDM switch.
KNIFE SPD OVERLOAD (Lower Line)	Knife speed is less than programmed set-point.
ENGINE RUNNING / HEADER ENGAGED / DRAPER HEADER / INDEX SWITCH ON
Scroll Through Display with CDM Switch or GSL Switch
DISPLAY (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# UNIT HRS	Total windrower operating hours.
#####.# HEADER HRS	Displays total header operating time.
##.# ACRES / HOUR ##.# HECTARES / HOUR (If Metric)	Displays actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (If Metric)	Displays area cut since last reset.
###### TOTAL ACRES ###### TOTAL HECT (If Metric)	Displays total area cut by machine.
##.## ##.# REEL IND (optional) ##.## ##.# REEL SENSOR (If sensor disabled)	Displays reel peripheral speed along with ground speed in MPH or KPH.
##.# ##.# DRAP INDX	Displays draper speed along with ground speed in MPH or KPH.
#### KNIFE SPEED (optional) #### KNIFE SENSOR (If sensor disabled)	Displays knife speed in strokes per minute. SPEED and SENSOR flash alternately.
##.# HEADER HEIGHT ##.# HEIGHT SENSOR (If sensor disabled)	Displays distance setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, HEIGHT and SENSOR flash alternately.
##.# HEADER ANGLE (optional) ##.# ANGLE SENSOR (If sensor disabled)	Displays angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# VOLTS	Displays engine electrical system operating voltage.
FUEL | ▪▪▪▪ | ▪▪▪▪ |	Displays level of fuel in tank.
ENGINE TEMP ### ° F ENGINE TEMP ### ° C (If Metric)	Displays engine coolant temperature.
SCROLL Sub-Menu (Lower Line only) #### KNIFE SPEED (optional) ##.# HEADER HEIGHT ##.## ##.# REEL IND ##.# ##.# DRAP INDX	Displays sub-menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through sub-menu display with CDM switch.
##.## REEL MIN RPM (Lower Line) (optional)	Displays reel speed is less than programmed set-point.
MINIMUM (Lower Line)	(optional)
