W110 Warning and Alarm Screens

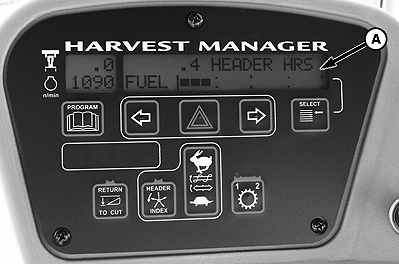

Warnings will display on the cab module screen at location A, if the condition exists. Alarms may sound to help bring the condition to the attention of the operator. . See the table below.

E60921-UN-18JUN12

DISPLAY WARNINGS AND ALARMS - ENGINE / TRANSMISSION
DISPLAY	FLASHING	ALARM TONE	DESCRIPTION
ENGINE OIL PRESSURE	YES	Continuous loud tone until oil pressure is recovered.	Low engine oil pressure accompanied by warning lights.
ENGINE TEMPERATURE	YES	Intermittent moderate tone until temperature is below 102 ° C (215 ° F).	Engine temperature over 102 ° C (215 ° F).
LOW VOLTS	YES	Short beep every 2 seconds. Flashes every second.	Voltage below 11.5.
HIGH VOLTS	YES	Short beep every 2 seconds. Flashes every second.	Voltage above 15.4.
IN PARK	YES	One short beep.	Steering wheel centered, and brakes engaged.
PLACE GSL INTO NEUTRAL	YES	Beeps at 2 per second until corrected.	Interlock switch not closed with key ON / Engine OFF.
TRANS OIL PRESSURE	YES	Continuous loud tone until oil pressure is recovered.	Low transmission charge oil pressure.
TRANS OIL TEMP	YES	Ongoing intermittent moderate tone until temperature is below acceptable level.	Transmission oil temperature above 105 ° C (221 ° F)
CENTER STEERING	NO	Beeps at 2 per second.	Interlock switch not closed with key ON / engine OFF.
DISENGAGE HEADER	YES	None	Header switch is in ON position when ignition switch turned OFF.
HEADER DISENGAGED	NO	None	Normal
KNIFE SPD OVERLOAD	YES	Ongoing intermittent moderate tone until condition is corrected.	Machine overload. Knife speed drops below programmed value.
LOW HYDRAULIC OIL	YES	Continuous loud tone for 5 seconds. If condition not rectified, single loud tone every 5 minutes.	Low hydraulic oil level. Header shuts down automatically if engaged. Header on switch must be moved to OFF position and then to ON position to restart header.
NO OPERATOR	NO	Continuous tone.	Operator not detected in seat with header engaged or our of Neutral-Detent. Engine shutdown after 5 seconds.
NOT IN PARK	YES	Short beep with each flash.	Interlock switch not closed with key ON / Engine OFF.
