W150 Operating Screens

The cab display provides information on functions for the engine, header and windrower.

Press button switches D or E to display or select the desired type of information to view or change.

Details on various information and operating modes are given in this section.

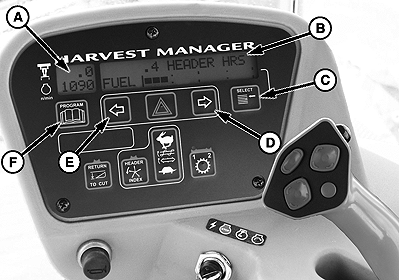

E60922-UN-02JUL12

A - Display

B - Upper Line

C - Lower Line

D - Lower Line Selector Switch

E - Upper Line Selector Switch

IGNITION ON / ENGINE NOT RUNNING
Display (Upper Line) 2 - 3 seconds	Description
HEADER DISENGAGED	Indicates HEADER DRIVE switch is off.
IN PARK	Indicates the GSL in N-DETENT.
ENGINE FORWARD / ENGINE RUNNING
Scroll Through Display with CDM Switch or MFH Switch
Display	Description
ROAD GEAR (Upper Line)	Displays ground speed range switch in high range.
#####.# ENGINE HRS (Upper or Lower Line)	Displays total engine operating time.
#####.# HEADER HRS	Displays total header operating time.
###### TOTAL ACRES (Upper or Lower Line) ###### TOTAL HECT (Metric)	Displays total area cut.
##.# HEADER HEIGHT (Upper or Lower Line)	Distance setting (00.0 - 10.0) between cutterbar and ground.
##.# HEADER ANGLE (Upper or Lower Line)	Angle setting (00.0 - 10.0) header relative to ground.
### HYD OIL TEMP	Hydraulic oil temperature in ° C or ° F.
##.# VOLTS	Displays engine electrical operating voltage.
SCROLL (Lower Line)	Displays above items after 2 - 3 seconds. Press SELECT to cancel.
CAB FORWARD / ENGINE RUNNING / HEADER DISENGAGED
Scroll Through Display with CDM Switch or MFH Switch
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# HEADER HRS	Displays total header operating time.
###.# SUB ACRES ###.# SUB HECTARES (Metric)	Area cut since last reset. To reset: Display SUB ACRES on lower line and hold down program switch until display resets. (5-7 seconds)
###### TOTAL ACRES ###### TOTAL HECT (Metric)	Total area cut by machine.
##.# HEADER HEIGHT	Distance setting (0.0 - 10.0) between cutterbar and ground.
##.# HEADER ANGLE	Angle setting (0.0 - 10.0) header relative to ground.
##.# L FLOAT R ##.#	Float setting (0.0 - 10.0)
### HYD OIL TEMP	Displays hydraulic oil temperature in ° C or ° F.
##.# VOLTS	Displays engine electrical system operating voltage.
SCROLL (Lower Line)	Displays above items after 2-3 seconds. Press SELECT to cancel.
CAB FORWARD / ENGINE RUNNING / HEADER ENGAGED / AUGER HEADER / INDEX SWITCH OFF
Scroll Through Display with CDM Switch or MFH Switch
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time
#####.# HEADER HRS	Displays total header operating time.
##.# ACRES/HOUR ##.# HECTARES/HOUR (Metric)	Displays actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (Metric)	Displays area cut since last reset. To reset: Display SUB ACRES on lower line and hold down program switch until display resets (5-7 seconds).
###### TOTAL ACRES ###### TOTAL HECT (Metric)	Displays total area cut by machine.
##.## REEL RPM ##.## REEL SENSOR (if sensor disabled)	Reel rotational speed. RPM and SENSOR flash alternately.
##.# AUGER SPEED	Displays auger rotational speed (4.7-9.9).
#### KNIFE SPEED #### KNIFE SENSOR (if sensor disabled)	Displays knife speed in strokes per minute. SPEED and SENSOR flash alternately.
##.# HEADER HEIGHT ##.# HEADER SENSOR (if sensor disabled)	Distance setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, HEIGHT and SENSOR flash alternately.
##.# HEADER ANGLE ##.# TILT SENSOR (if sensor disabled)	Angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# L FLOAT R ##.# FLOAT SENS DISABLED (if sensor disabled)	Left and right float setting (00.0 - 10.0). Does not flash, if sensor disabled.
LOAD | ▪ ▪ ▪ ▪ | | ####	Displays bar graph representing hydraulic operating pressure. Full scale is pre-programmed overload pressure (2 500-5 000 psi). If sensor disabled, LOAD does not display. See Note
### HYD OIL TEMP	Displays hydraulic oil temperature in ° C or ° F. If sensor disabled, OIL TEMP and SENSOR flash alternately.
##.# VOLTS	Engine electrical system operating voltage.
SCROLL Sub-Menu (Lower Line only) KNIFE SPEED HEADER HEIGHT LOAD |▪▪▪▪|▪▪▪▪| ####	Displays Sub-Menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through Sub-Menu display with CDM switch.
Note: The LOAD sensor to monitor knife / conditioner circuit pressure is factory-installed. To monitor reel / auger circuit pressure, relocate sensor as per instruction from dealer.
CAB FORWARD / ENGINE RUNNING / HEADER ENGAGED / AUGER HEADER / INDEX SWITCH ON
Scroll Through Display with CDM Switch or MFH Switch
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# HEADER HRS	Displays total header operating time.
##.# ACRES / HOUR ##.# HECTARES / HOUR (Metric)	Displays actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (Metric)	Area cut since last reset. To reset: Display SUB ACRES on lower line and hold down program switch until display resets (5-7 seconds).
###### TOTAL ACRES ###### TOTAL HECT (Metric)	Displays total area cut by machine.
##.## ##.# REEL IND ##.## ##.# REEL SENSOR (Sensor Disabled)	Displays reel peripheral speed along with ground speed in MPH or KPH.
##.# AUGER SPEED	Displays auger rotational speed (4.7 - 9.9).
#### KNIFE SPEED #### KNIFE SENSOR (if sensor disabled)	Knife speed in strokes per minute. SPEED and SENSOR flash alternately.
##.# HEADER HEIGHT ##.# HEIGHT SENSOR (If Sensor Disabled)	Distance Setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, HEIGHT and SENSOR flash alternately.
##.# HEADER ANGLE ##.# TILT SENSOR (If Sensor Disabled)	Angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# L FLOAT R ##.# FLOAT SENS DISABLED (if sensor disabled)	Left and right float setting (00.0 - 10.0). If sensor disabled - does not flash.
LOAD | ▪ ▪ ▪ ▪ | | #### (if Metric)	Bar graph representing hydraulic operating pressure. Full scale is pre-programmed overload pressure (2 500-5 000 psi). If sensor disabled, LOAD does not display. See Note
Note: The LOAD sensor to monitor knife / conditioner circuit pressure is factory-installed. To monitor reel / auger circuit pressure, re-locate sensor as per instruction from dealer.
### HYD OIL TEMP	Displays hydraulic oil temperature in ° C or ° F .
##.# VOLTS	Displays engine electrical system operating voltage.
SCROLL Sub-Menu (Lower Line only) #### KNIFE SPEED ##.# HEADER HEIGHT LOAD |▪▪▪▪|▪▪▪▪| ####	Displays Sub-Menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through Sub-Menu display with CDM switch.
CAB FORWARD / ENGINE RUNNING / HEADER ENGAGED / DRAPER HEADER / INDEX SWITCH OFF
Scroll Through Display with CDM Switch or MFH Switch
DISPLAY (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# HEADER HRS	Displays total header operating time.
##.# ACRES/HOUR ##.# HECTARES / HOUR (Metric)	Displays actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (Metric)	Displays area cut since last reset. To reset: Display SUB ACRES on lower line and hold down program switch until display resets (5-7 seconds).
###### TOTAL ACRES ###### TOTAL HECT (Metric)	Displays total area cut by machine.
##.## REEL MPH ##.## REEL KPH (Metric) ##.## REEL SENSOR (sensor disabled)	Displays reel peripheral speed.
##.# DRAPER SPEED	Displays draper speed (0.0 - 11.0.
#### KNIFE SPEED #### KNIFE SENSOR (sensor disabled)	Displays knife speed in strokes per minute. RPM and SENSOR flash alternately.
##.# HEADER HEIGHT ##.# HEADER SENSOR (sensor disabled)	Displays distance setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, HEIGHT and SENSOR flash alternately.
##.# HEADER ANGLE ##.# TILT SENSOR (sensor disabled)	Displays angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# L FLOAT R ##.# FLOAT SENS DISABLED (if sensor disabled)	Displays left and right float setting (0.0 - 10.0). If sensor disabled - does not flash.
LOAD | ▪ ▪ ▪ ▪ | | #### (if Metric)	Bar graph representing hydraulic operating pressure. Full scale is pre-programmed overload pressure (2 500 - 5 000 psi). If sensor disabled, LOAD does not display. See Note.
Note: The LOAD sensor to monitor knife / conditioner circuit pressure is factory-installed. To monitor reel / draper circuit pressure, relocate sensor as per instruction from dealer.
### HYD OIL TEMP	Displays hydraulic oil temperature in ° C or ° F.
##.# VOLTS	Displays engine electrical system operating voltage.
SCROLL Sub-Menu (Lower Line only) #### KNIFE SPEED (optional) ##.# HEADER HEIGHT LOAD |▪▪▪▪|▪▪▪▪| #### ##.## REEL MPH ##.# DRAPER SPEED	Displays sub-menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through sub-menu display with CDM switch.
CAB FORWARD / ENGINE RUNNING / HEADER ENGAGED / DRAPER HEADER / INDEX SWITCH ON
Scroll through display with CDM or MFH switch.
Display (Lower or Upper Line)	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# HEADER HRS	Displays total header operating time.
##.# ACRES / HOUR ##.# HECTARES / HOUR (Metric)	Displays actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (Metric)	Area cut since last reset. To reset: Display SUB ACRES on lower line and hold down program switch until display resets (5 - 7 seconds).
###### TOTAL ACRES ###### TOTAL HECT (Metric)	Displays total area cut by machine.
##.## ##.# REEL IND ##.## REEL SENSOR (sensor disabled)	Displays reel peripheral speed along with ground speed in MPH or KPH.
##.# ##.# DRAP INDX	Displays draper speed along with ground speed in MPH or KPH.
#### KNIFE SPEED #### KNIFE SENSOR (sensor disabled)	Displays knife speed in strokes per minute. SPEED and SENSOR flash alternately.
##.# HEADER HEIGHT ##.# HEIGHT SENSOR (sensor disabled)	Displays distance setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, HEIGHT and SENSOR flash alternately.
##.# HEADER ANGLE ##.# TILT SENSOR (sensor disabled)	Displays angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# L FLOAT R ##.# FLOAT SENS DISABLED (if sensor disabled)	Displays left and right float setting (0.0 - 10.0). If sensor disabled, does not flash.
LOAD | ▪ ▪ ▪ ▪ | | ####	Displays bar graph representing hydraulic operating pressure. Full scale is pre-programmed overload pressure (2 500 - 5 000 psi). If sensor disabled, LOAD does not display. See Note.
NOTE: The LOAD sensor to monitor knife / conditioner circuit pressure is factory-installed. To monitor reel / draper circuit pressure, relocate sensor as per instruction from dealer.
### HYD OIL TEMP	Displays hydraulic oil temperature in ° C or ° F.
##.# VOLTS	Displays engine electrical system operating voltage.
SCROLL SUB-MENU (lower line only) #### KNIFE SPEED ##.# HEADER HEIGHT LOAD |▪▪▪▪|▪▪▪▪| #### ##.## REEL IND ##.# DRAP INDX	Displays sub-menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through sub-menu display with CDM switch.
##.## REEL MIN RPM (Lower Line)	Displays if reel speed drops below programmed set-point.
MINIMUM (Lower Line)	Reel speed at zero ground speed.
CAB FORWARD / ENGINE RUNNING / HEADER ENGAGED / ROTARY HEADER
Scroll Through Display with CDM or MFH Switch
Display (Lower or Upper Line	Description
#####.# ENGINE HRS	Displays total engine operating time.
#####.# HEADER HRS	Displays total header operating time.
##.# ACRES / HOUR ##.# HECTARES / HOUR (Metric)	Displays actual cutting rate in acres (hectares) / hour.
###.# SUB ACRES ###.# SUB HECTARES (Metric)	Area cut since last reset. To reset: Display SUB ACRES on lower line and hold down program switch until display resets (5 - 7 seconds).
###### TOTAL ACRES ###### TOTAL HECT (Metric)	Displays total area cut by machine.
#### DISC RPM ##.## REEL SENSOR (if sensor disabled)	Displays disc rotational speed.
##.# HEADER HEIGHT ##.# HEIGHT SENSOR (if sensor disabled)	Displays distance setting (00.0 - 10.0) between cutterbar and ground. If sensor disabled, SPEED and SENSOR flash alternately.
##.# HEADER ANGLE ##.# TILT SENSOR (if sensor disabled)	Displays angle setting (00.0 - 10.0) header relative to ground. If sensor disabled, ANGLE and SENSOR flash alternately.
##.# L FLOAT R ##.# FLOAT SENS DISABLED (if sensor disabled)	Displays left and right float setting (0.0 - 10.0). If sensor disabled, does not flash.
LOAD | ▪ ▪ ▪ ▪ | | #### (if Metric)	Displays bar graph representing hydraulic operating pressure. Full scale is pre-programmed overload pressure (2 500 - 5 000 psi). If sensor disabled, LOAD does not display.
### HYD OIL TEMP	Displays hydraulic oil temperature in ° C or ° F.
##.# VOLTS	Displays engine electrical system operating voltage.
SCROLL SUB-MENU (lower line only) #### KNIFE SPEED ##.# HEADER HEIGHT LOAD |▪▪▪▪|▪▪▪▪| ####	Displays sub-menu after 2 - 3 seconds. Press SELECT to cancel. Scroll through sub-menu display with CDM switch.
MISCELLANEOUS OPERATIONAL INFORMATION
Display (Upper Line)	Description
< LEFT TURN ▪	Indicates left turn when left turn arrow is pressed on CDM. See NOTE 1.
▪ RIGHT TURN >	Indicates right turn when right turn arrow is pressed on CDM. See NOTE 2.
▪ HAZARD ▪	Indicates hazard warning lights are on when hazard switch is pressed on CDM.
HEADER REVERSE	Header drive engaged in reverse.
HEADER ENGAGED	Header drive engaged.
ROAD GEAR	With high range selected on console switch. Engine forward only.
NOTE 1: If road light kit is NOT installed, CDM will display E135 LEFT STOP LAMP as a malfunction in CAB FORWARD mode. NOTE 2: If road light kit is NOT installed, CDM will display E134 RIGHT STOP LAMP as a malfunction in CAB FORWARD mode.
