Replace DEF Filter Kit

CAUTION: Avoid contact with eyes. In case of contact, immediately flush eyes with large amounts of water for a minimum of 15 minutes. Reference Materials Safety Data Sheet (MSDS) for additional information.

IMPORTANT: If DEF is spilled or contacts any surface other than storage tank, immediately clean surface with clear water. DEF is corrosive to painted surfaces and unpainted metallic surfaces and can distort some plastic and rubber components.

Spilled DEF, if left to dry or if only wiped away with a cloth, leaves a white residue. Improperly cleaned DEF spill can interfere with diagnosis of Selective Catalytic Reduction (SCR) system leakage problems.

1.

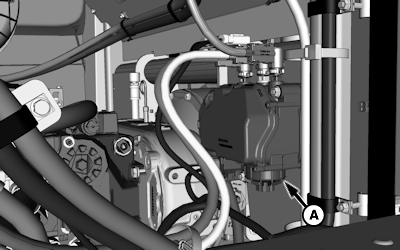

   E70210-UN-07JUN13

   (S.N. -410000)

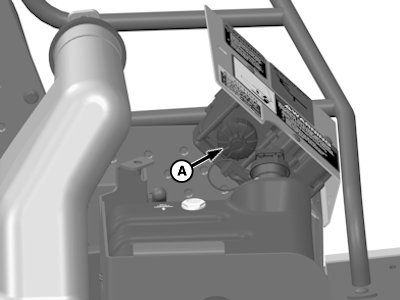

   E76357-UN-27JUN14

   (S.N. 410001-)

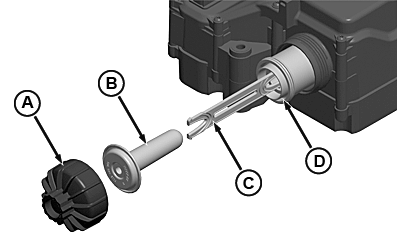

   RG22534-UN-21MAR13

   A - Filter Cover

   B - Filter Equalizing Element

   C - Filter Tool

   D - Filter

   (S.N. -410000): Open left-hand compartment door to access DEF dosing filter.

   (S.N. 410001-): Open left-hand access panel to access DEF dosing filter.

---




2. Remove DEF dosing unit filter cover (A).

3. Remove and discard DEF dosing unit filter equalizing element (B).

4. Insert “Black” end of DEF dosing unit filter tool (C) into DEF dosing unit filter (D) until a CLICK is felt or heard, indicating DEF dosing unit filter tool is fully engaged.

5. NOTE: A tool such as a screwdriver can be inserted into DEF dosing unit filter tool slot to assist removal.

   Pull DEF dosing unit filter tool and DEF dosing unit filter from DEF dosing unit. Discard DEF dosing unit filter and DEF dosing unit filter tool.

6. Clean DEF dosing unit threads and mating surfaces with distilled water.

7. Lubricate replacement DEF filter O-rings with clean engine oil. Carefully insert DEF dosing unit filter into DEF dosing unit.

8. Install replacement DEF dosing unit filter equalizing element (B) into DEF dosing unit filter.

9. Install DEF dosing unit filter cover (A) and tighten to specifications.

   Item	Measurement	Specification
   DEF Filter Cover	Torque	23 N·m (204 lb.-in.)
