Safety Signs
E77742-UN-18DEC14
SSK9A067CE-UN-18DEC14
(A)
SSK9A117CE-UN-18DEC14
(B)

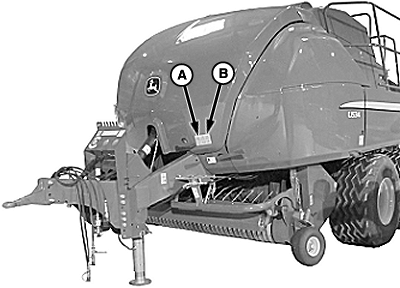

(A)—This Operator's Manual contains all important information necessary for safe machine operation. Carefully observe all safety rules to avoid accidents.
Before carrying out repair and maintenance work, shut off engine and remove key.
(B)—Do not touch any moving machine parts. Wait until all moving parts have stopped and turn off tractor.
E77741-UN-18DEC14
Both Sides
SSK9A071CE1-UN-18DEC14
(A)
SSK9A059CE-UN-18DEC14
(B)

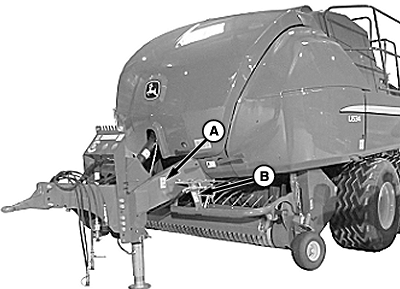

(A)—Stay clear of rotating driveline to avoid personal injury.
Turn off tractor when connecting, disconnecting, or servicing driveline. Be sure that all shields are in place and functioning properly.
(B)—Rotating pickup can catch you faster than you can move away.
Stay clear of rotating pickup as it may result in death or serious injury.

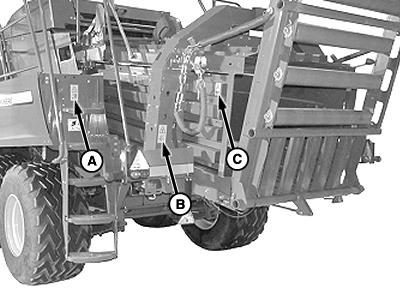

E77750-UN-18DEC14
Both Sides
SSK9A121CE-UN-18DEC14
(A)
SSK9A109CE-UN-18DEC14
(B)
SSK9A069CE-UN-18DEC14
(C)
(A)—Avoid serious injury from falling. Do Not ride on machine.
(B)—Do not allow anyone to walk or work under a raised bale chute.
Stay clear of raised bale chute as it could close faster than you can move away and may result in death or serious injury.
(C)—Keep out of the hazard area while parts are moving.
E81607-UN-06OCT16
Both Sides
E81608-UN-13OCT16
(A)

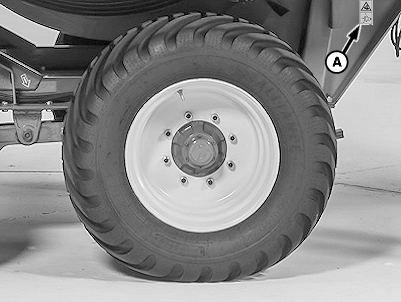

(A)—Always place chocks if the machine is parked on a non-horizontal surface.

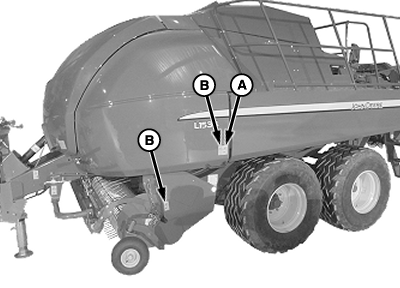

E77751-UN-18DEC14
E77752-UN-18DEC14
SSK9A117CE-UN-18DEC14
(A)
SSK9A065CE-UN-18DEC14
(B)

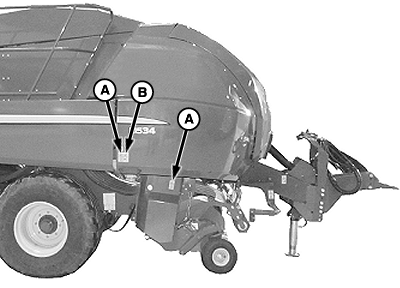

(A)—Do not touch any moving machine parts. Wait until all moving parts have stopped and turn off tractor.
(B)—Do not open or remove guard when the baler is running.
Turn off tractor before accessing or servicing chains.
E80012-UN-18SEP15

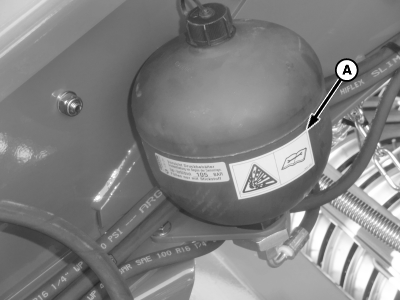

If Equipped with Hydraulic Brakes
SS599013001-UN-18DEC14
(A)
(A)—Hydraulic accumulator contains gas or oil under pressure
Service or repair must be performed by trained service technician
This is a hazardous situation which, if not avoided, could result in death or serious injuries.

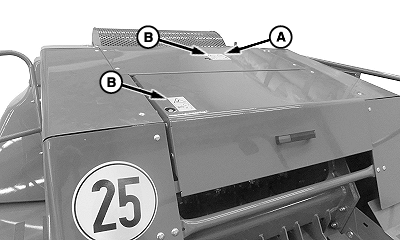

E80027-UN-29SEP15
SSK9A071CE1-UN-18DEC14
(A)
SSK9A065CE-UN-18DEC14
(B)

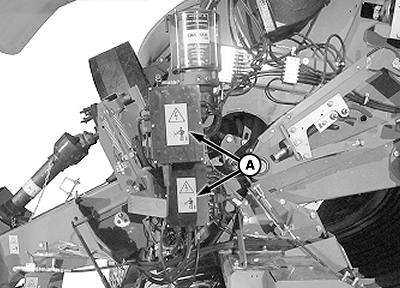

(A)—Entanglement with rotating equipment can cause serious injury or death.
Keep all shields in place until machine comes to a complete stop before servicing.
Avoid contact with rotating parts.
(B)—Do not open or remove guard when the machine is running.
Turn off tractor before accessing or servicing blower or knotters.
E77727-UN-18DEC14
SSK9A143CE-UN-18DEC14
(A)
(A)—Do not use a high-pressure cleaner or water on electric parts, to avoid damages and serious injuries.

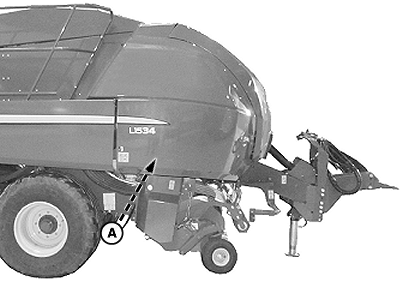

E77746-UN-18DEC14
23-Knife Precutter Only
SS599013001-UN-18DEC14
(A)
(A)—Hydraulic accumulator contains gas or oil under pressure
Service or repair must be performed by trained service technician
This is a hazardous situation which, if not avoided, could result in death or serious injuries.
Prechopper (If equipped)
(A) — This Operator’s Manual contains all important information necessary for safe machine operation. Carefully observe all safety rules to avoid accidents.
(B) — Before carrying out repair and maintenance work, shut off engine and remove key.
(C) — Do not touch any moving machine parts. Wait until all moving parts have stopped and turn off tractor.
E80907-UN-22DEC15
Prechopper (If Equipped)
E80896-UN-17DEC15
(A)
E80897-UN-17DEC15
(B)
E80898-UN-17DEC15
(C)
A - Safety Label
B - Safety Label
C - Safety Label

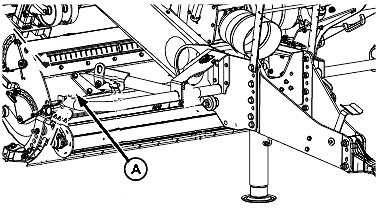

E80595-UN-17DEC15
Prechopper (If Equipped)
E80588-UN-21DEC15
Prechopper (If Equipped)
E80899-UN-18DEC15
(A)
A - Safety Label
Keep out of hazard area while parts are moving.

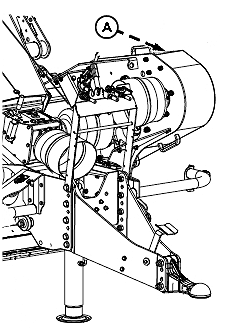

E80592-UN-22DEC15
Prechopper (If Equipped)
E80900-UN-18DEC15
A - Safety Label
Do not open or remove guard when prechopper is running. Turn off tractor before accessing or servicing chains.

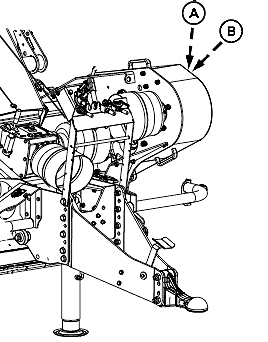

E80593-UN-22DEC15
Prechopper (If Equipped)
E80901-UN-18DEC15
(A)
E80902-UN-18DEC15
(B)
A - Safety Label
B - Safety Label
Keep away from mower knives while engine is running, PTO drive is engaged, and moving parts have not come to a complete stop.Stones and other debris projected by moving parts can travel long distances. Protection covers must always be in position and in good condition. Always stay a safe distance from machine.

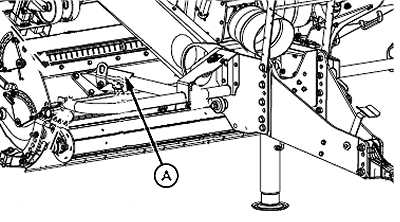

E80596-UN-17DEC15
Prechopper (If Equipped)
E80905-UN-18DEC15
(A)
A - Safety Label
Hoist machine only by using the hoist-eyes. Never get under a hoisted machine.

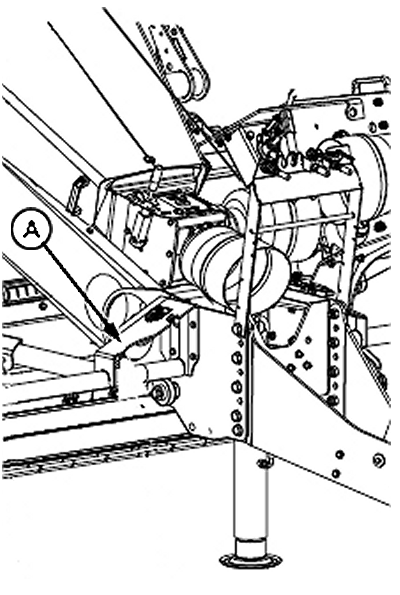

E80895-UN-17DEC15
Prechopper (If Equipped)
E80906-UN-21DEC15
(A)
A - Safety Label
Rotating pickup can catch you faster than you can move away. Stay clear of rotating pickup as it may result in death or serious injury.|
