Adjust Baler Drawbar (New Style)

ZX1046048-UN-03JAN12

ZX1046049-UN-03JAN12

E77001-UN-27AUG14

A - Valve—Baler Side

B - Valve—Tractor Side

C - Lever

D - Axle Frame

E - Spirit Level

1 - Jackstand Position

Before attaching the baler, be sure to adjust the baler drawbar and the hitch eye position.

Verify that machine is level:

1. Connect the hydraulic hose leading to the valve (A) to the relevant tractor selective control valve.

2. Open the valve (B) at the end of the hose at the tractor side.

3. Place valve lever (C) to jackstand position (1) as shown.

4. Raise or lower jackstand until the baler drawbar is level. Measurement is taken at the axle frame (D) with a standard spirit level (E) as shown.

5.

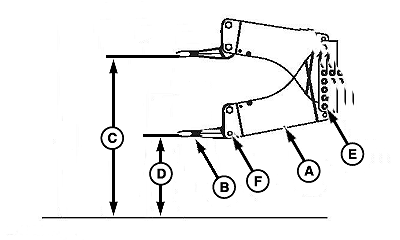

   E81536-UN-24JUN16

   A - Drawbar

   B - Hitch Eye Bolt

   C - High Hitch

   D - Low Hitch

   E - Cap Screws and Nuts

   F - Cap Screws

   Adjust Drawbar (A) Position:

   Select the correct position in accordance with your tractor so that the tractor and machine are lined up correctly (see Preparing the Tractor section).

   To adjust the drawbar (A) and hitch eye (B), it is possible to turn the drawbar (A) up-side-down for a high or low hitching.

   The drawbar (A) can be adjusted to both a low and a high hitch, within the following ranges:

   • High Hitch (C)—0.84—1.15 m (2 ft 9 in—3 ft 9 in)
   • Low Hitch (D)—0.38—0.70 m (1 ft 3 in —2 ft 4 in)



   1. Secure the drawbar (A) using suitable hoist.

   2. Remove and retain cap screws and nuts (E).

   3. Place the drawbar (A) to the required position using the hoist and retain using previously removed cap screws and nuts.

      Fit the drawbar (A) always using a minimum of four bolts and nuts (E) on each side. The distance of the cap screws and nuts must be as far from each other as possible, with a minimum overlap of five holes.

   4. Tighten cap screws to specification.

      Cap Screws	Torque	400 N·m (295 lb·ft)

   5. Remove hoist.

---




6. Adjust Hitch Eye (B) Position:

   1. Remove and retain cap screws, washers, and nuts (F).

   2. Move the hitch eye (B) to the required position and retain using previously removed cap screws, washers, and nuts (F).

   3. Tighten cap screws and nuts to specification.

      Cap Screws and Nuts	Torque	700 N·m (517 lb·ft)

7. Attach baler to the tractor (see Attaching and Detaching section).
