Check Tire Pressure

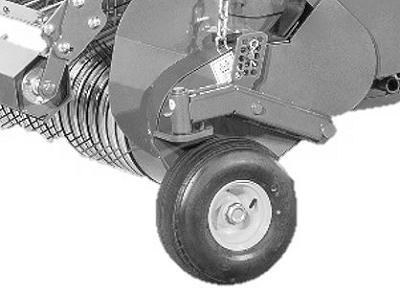

E81862-UN-29NOV16
Check Tire Pressure—Gauge Wheels

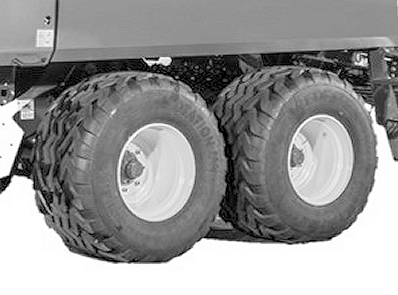

E81861-UN-29NOV16
Check Tire Pressure—Axle Wheels
Tire pressure depends on tire size and drive speed. Refer to
the table to check tire pressure accordingly:
|
Gauge Wheel Tire Pressure
bar (kPa) (psi)
|
|
Tire Size
|
Pressure
|
|
15X6.00-6
|
1.75 (175) (25)
|
| |
Axle Wheel Tire Pressure
bar (kPa) (psi)
|
|
Tire Type
|
Speed
|
|
25 km/h (16 mph)
|
30 km/h (18 mph)
|
40 km/h (25 mph)
|
50 km/h (31 mph)
|
60 km/h (38 mph)
|
| |
|
600/55-22.5 TL 168 A8 Flotation +
(Single axle)
|
1.95 (195) (28)
|
2.10 (210) (30)
|
2.45 (245) (35)
|
Not Allowed
|
Not Allowed
|
|
710/40-R22.5 TL 161 D Flotation Pro (Single axle)
|
2.50 (250) (36)
|
2.65 (265) (38)
|
3.00 (300) (43)
|
3.50 (350) (51)
|
Not Allowed
|
|
550/45-22.5 648 Flotation 16TL (Tandem
axle)
|
1.20 (120) (18)
|
1.20 (120) (18)
|
1.50 (150) (22)
|
1.80 (180) (27)
|
Not Allowed
|
|
560/45-R22.5 TL 146D Floatation Pro (Tandem axle)
|
1.65 (165) (24)
|
1.75 (175) (25)
|
2.05 (205) (29)
|
2.40 (240) (34)
|
2.80 (280) (40)
|
|
620/50-R22.5 TL 154D Flotation Pro
(Tandem axle)
|
1.20 (120) (17)
|
1.25 (125) (18)
|
1.45 (145) (21)
|
1.75 (175) (25)
|
1.85 (185) (27)
|
|
Tire Type
|
Axle Wheel Tire Pressure If Equipped with
Prechopper
bar (kPa) (psi)
|
|
Speed
|
|
25 km/h (16 mph)
|
40 km/h (25 mph)
|
50 km/h (31 mph)
|
60 km/h (38 mph)
|
|
560/45-22.5
|
1.8 (180) (26)
|
2.0 (200) (29)
|
2.3 (210) (34)
|
2.9 (290) (42)
|
|
620/50-22.5
|
1.4 (140) (20)
|
1.7 (170) (25)
|
1.7 (210) (25)
|
2.2 (220) (32)
|
|
|
OUO6064,0001902-19-20161129
|
|
