Check Wheel Nut Torque

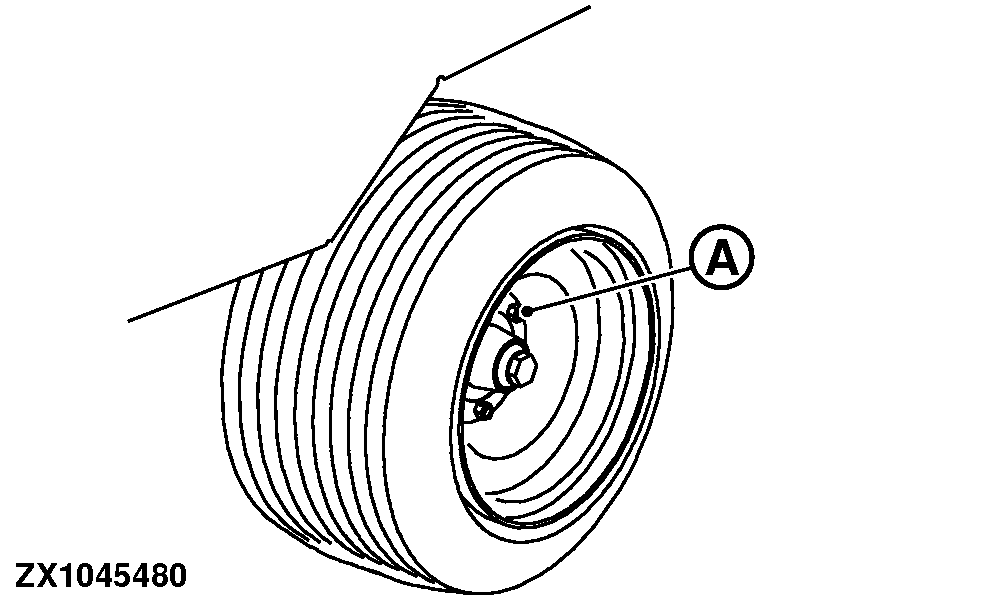

ZX1045480-UN-03JAN12

A - Wheel Nut

Check wheel nut torque after first 10 hours of use.

Whenever a wheel has been removed and installed, check torque after 10 hours of operation. Tighten wheel nuts (A) to specified torque.

(8) M18 Wheel Nuts	Torque	270 N·m (200 lb·ft)
(10) M22 Wheel Nuts	Torque	450 N·m (332 lb·ft)
