Use of Gear Oil

Main Gear Case

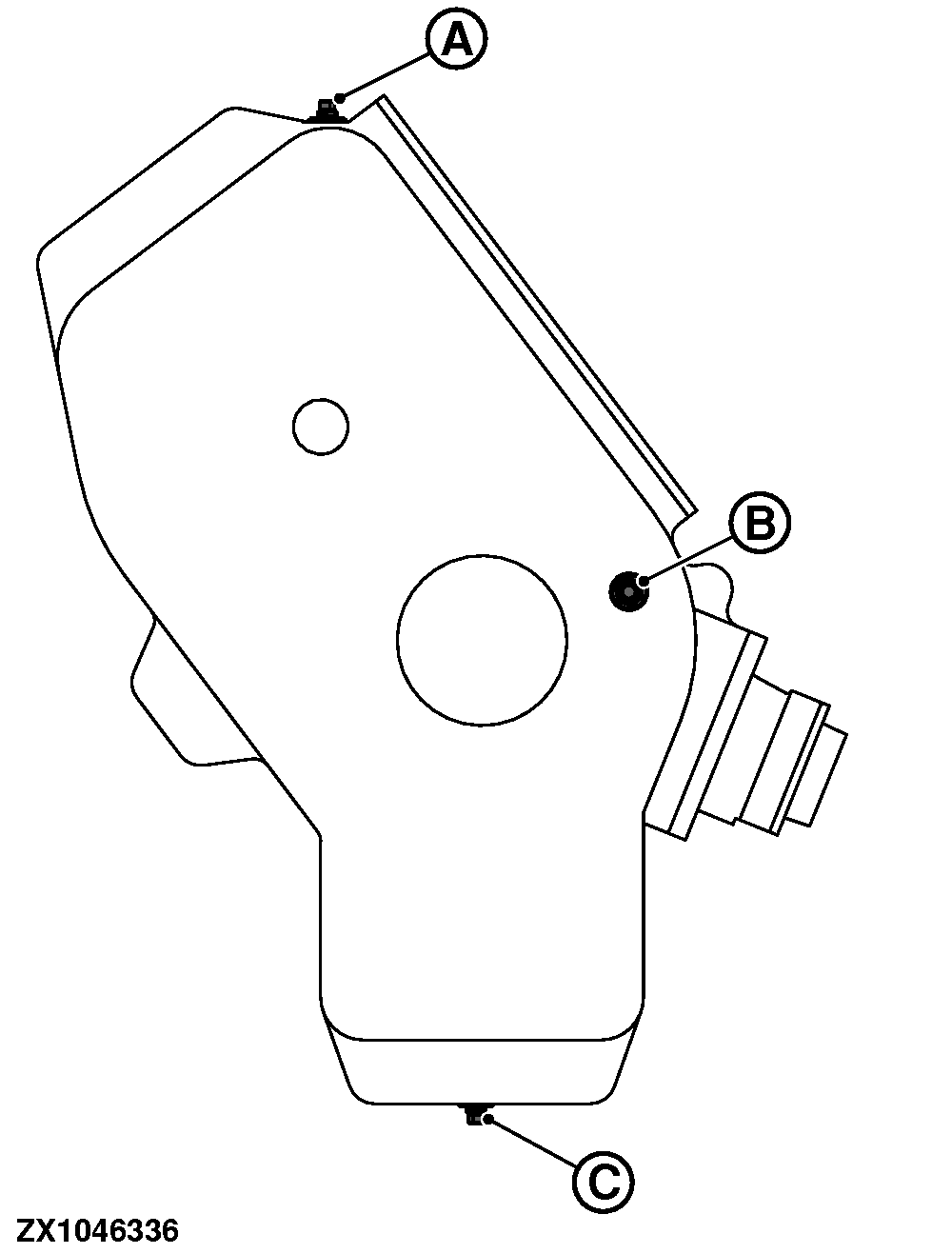

ZX1046336-UN-12JAN12

A - Filler Plug

B - Sight Glass

C - Oil Drain Plug

L1533 Large Square Baler—Capacity:

26 L (7 gal)

L1524 and L1534 Large Square Baler—Capacity:

42 L (11 gal)

Oil level in main gear case:

Oil level must be at least flush with bottom of sight glass (B).

Packer Gear Case

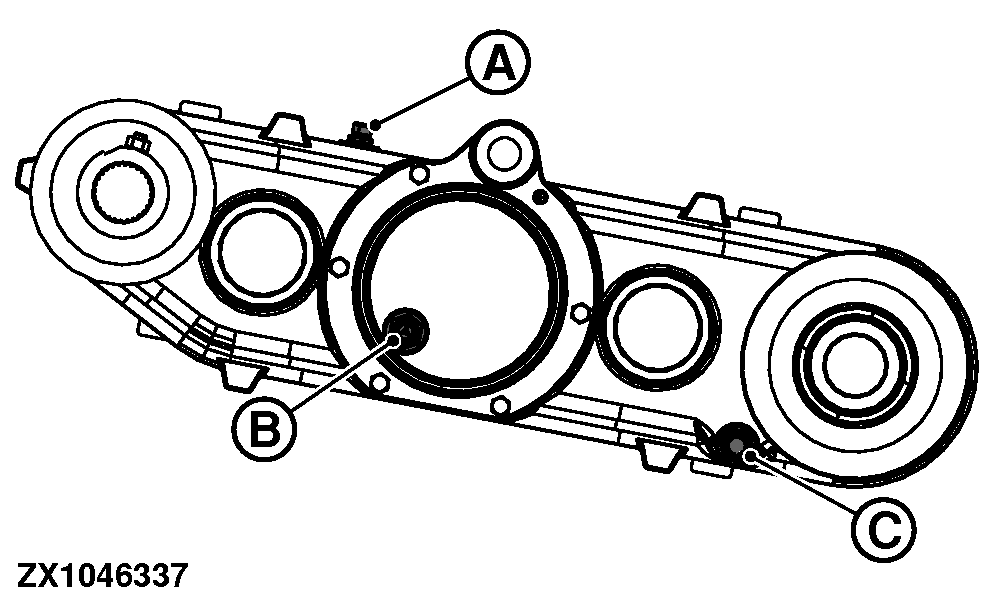

ZX1046337-UN-12JAN12

A - Filler Plug

B - Sight Glass

C - Oil Drain Plug

Capacity: 4 L (1.06 gal)

Oil level in packer gear case:

Oil level must be at least flush with bottom of sight glass (B).

Lower Knotter Gear Case

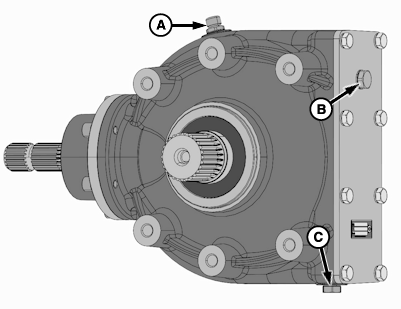

E73476-UN-19MAR14

A - Filler Plug

B - Check Plug

C - Oil Drain Plug

L1524 and L1534 Large Square Baler—Capacity:

Capacity: 3.6 L (1.0 gal)

L1533 Large Square Baler—Capacity:

Capacity: 3.3 L (0.9 gal)

Fill oil at filler plug (A) up to bottom of the hole at the check plug (B). Drain oil at oil drain plug (C).

Upper Knotter Gear Case

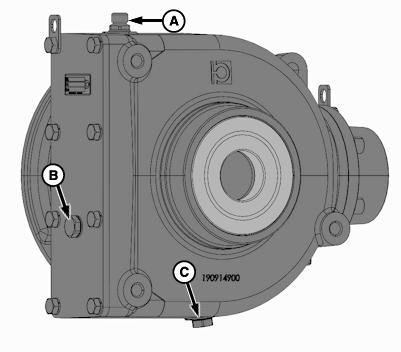

E73472-UN-19MAR14

A - Filler Plug

B - Check Plug

C - Oil Drain Plug

L1524 and L1534 Large Square Baler—Capacity:

Capacity: 2.1 L (0.6 gal)

L1533 Large Square Baler—Capacity:

Capacity: 0.8 kg (1.8 lb)

Fill oil at filler plug (A) up to bottom of the hole at the check plug (B). Drain oil at oil drain plug (C).

Prechopper Gear Drive (If Equipped)

Check oil level.

1.
   E81427-UN-02JUN16

   A - Fill Plug

   B - Check Level Plug

   Remove and retain check level plug (B). If oil comes out of the gap, level is okay; reinstall plug. If no oil comes out of the gap, fill gear case. (See next step.)


---

2. Fill gear case with oil:
   1. Remove and retain the fill plug (A).
   2. Remove and retain the check level plug (B).
   3. Replenish oil until a little comes out of the gap.
   4. Reinstall the check level plug (B).
   5. Reinstall the fill plug (A).
