Adjust Pickup Chain Tension

L1533

E75894-UN-16MAY14

A - Spring Tension

Verify that the chain spring tension (A) is within specification. Adjust as needed.

L1533 Pickup Drive Chain Tension Spring	Distance	135 mm (5.31 in)

L1524 and L1534

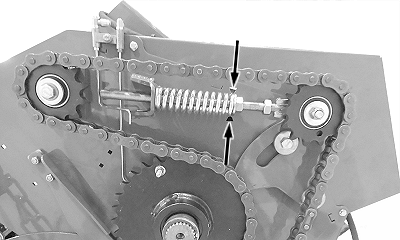

E71765-UN-17OCT13

Verify that the chain spring tension (A) is within specification. Adjust as needed.

L1524 and L1534 Pickup Drive Chain Tension Spring	Distance	135 mm (5.31 in)

Spring is in correct adjustment when washer is aligned with arrow indicators as shown.
