Twine Routing Diagrams

E73197
E73197-UN-25NOV14

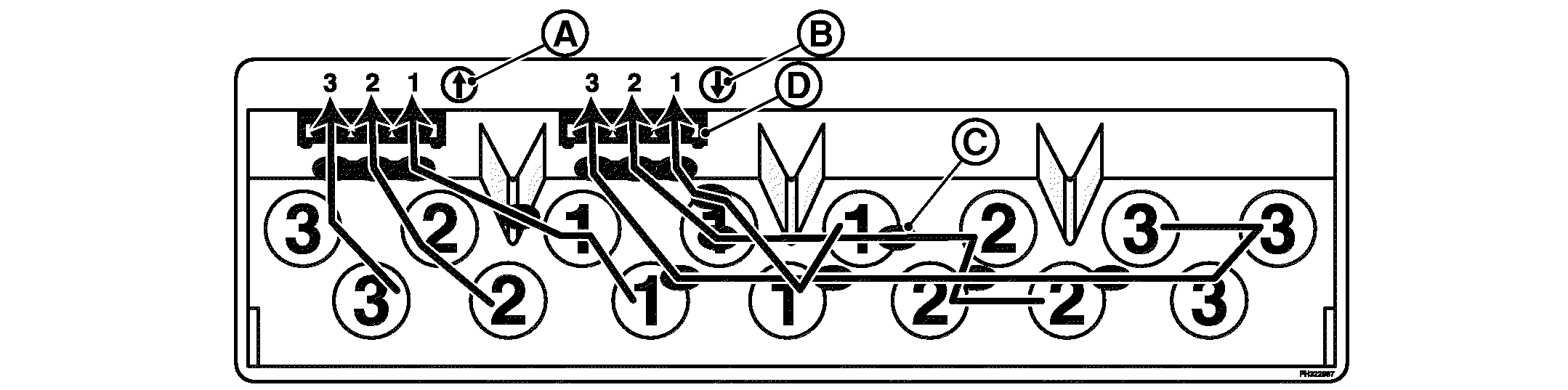

Left-Hand Side Shown—L1524 and L1534

E73198
E73198-UN-25NOV14

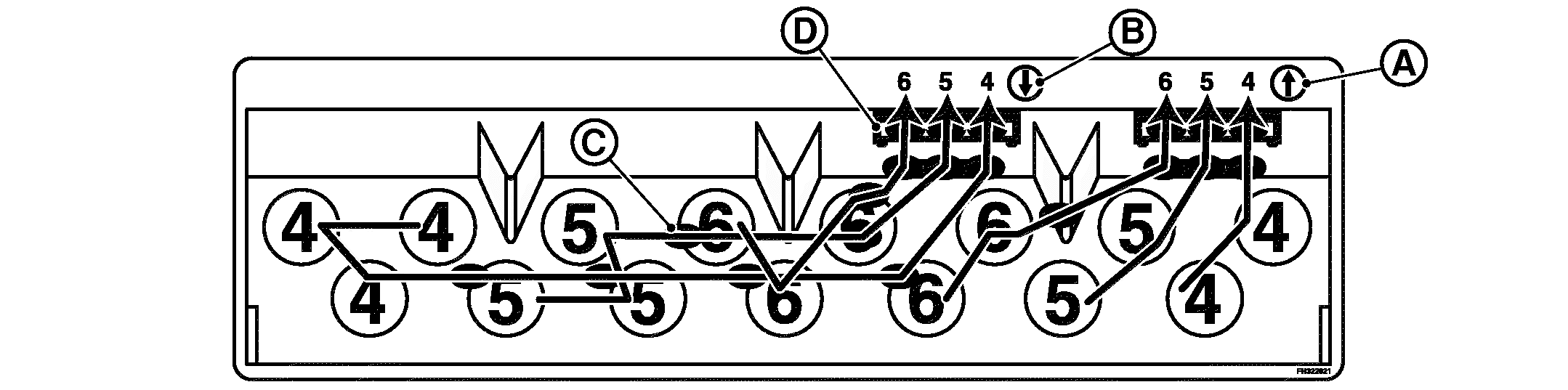

Right-Hand Side Shown—L1524 and L1534

E73261
E73261-UN-25NOV14

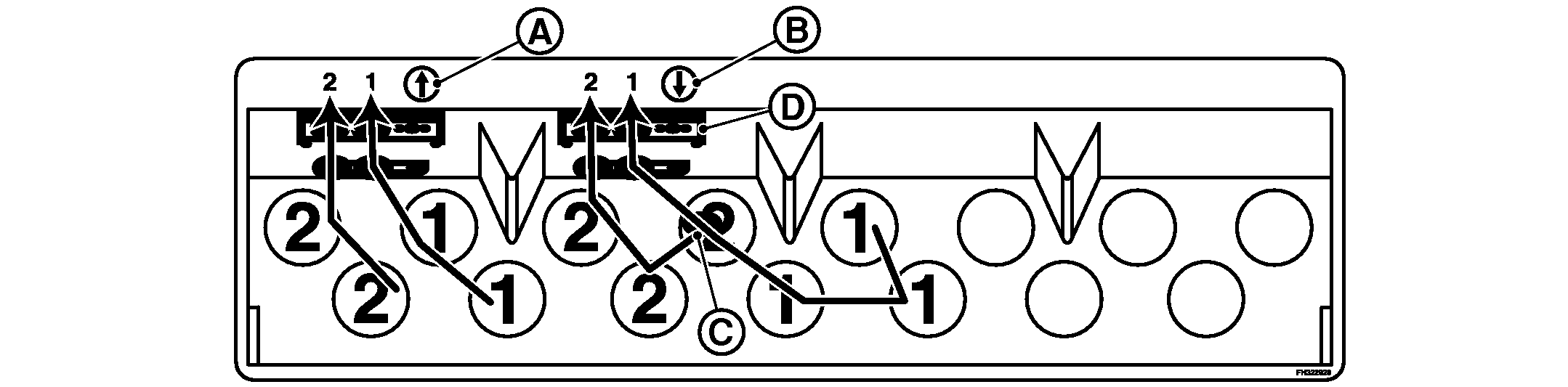

Left-Hand Side Shown—L1533

E73262
E73262-UN-25NOV14

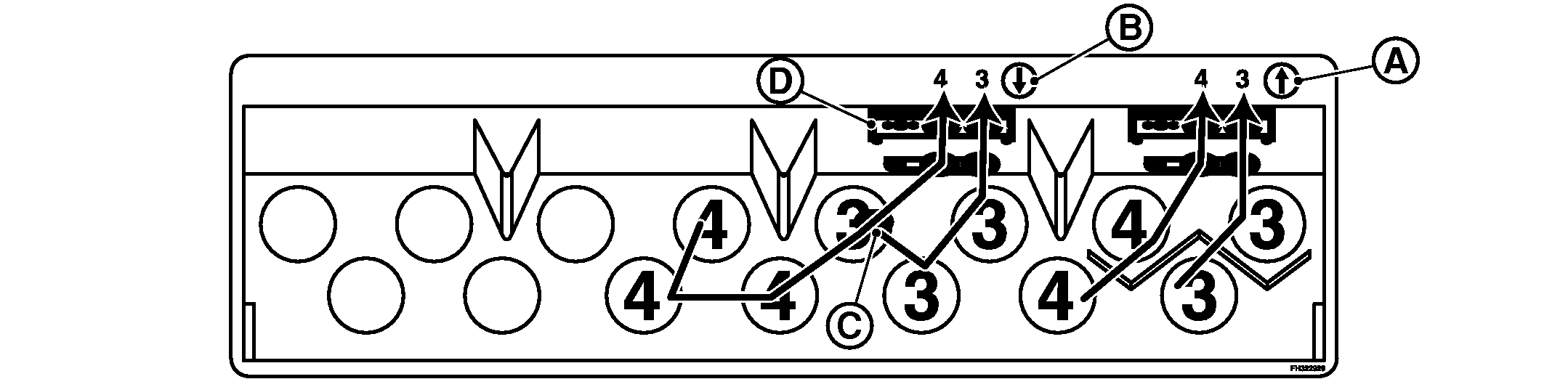

Right-Hand Side Shown—L1533

A - Up Arrow

B - Down Arrow

C - Twine Guide

D - Tension Plate

1 - Twine Balls to Needle 1

2 - Twine Balls to Needle 2

3 - Twine Balls to Needle 3

4 - Twine Balls to Needle 4

5 - Twine Balls to Needle 5

6 - Twine Balls to Needle 6

Up arrow (A) indicates twine being fed to the upper tensioner. Down arrow (B) indicates twine being fed to the lower tensioner.
