Use Flywheel Brake

To avoid personal injury, engage flywheel brake BEFORE performing the following procedures:

  • Attaching and Detaching Baler
  • Lubrication and Maintenance
  • Service

E81722
E81722-UN-14OCT16

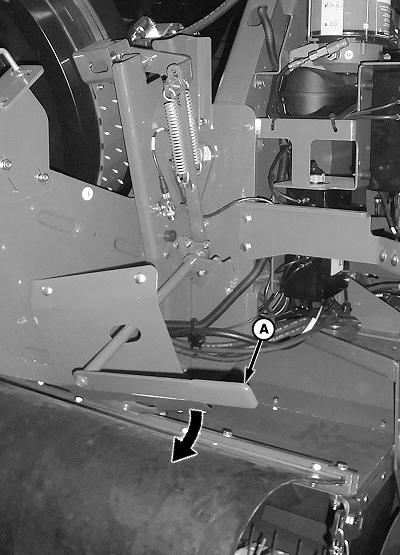

A - Lever

To engage the flywheel brake, rotate the lever (A) down to lock position.

To disengage the flywheel brake, rotate the lever (A) up to unlock position as shown.

OUO6064,000192D-19-20161017
