Adjust Roller Baffle

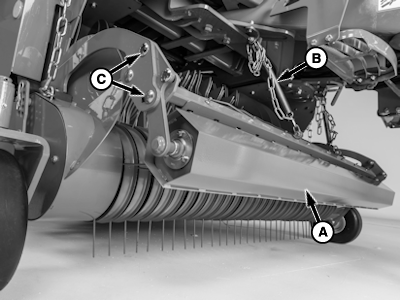

E75760-UN-09MAY14

A - Compressor Roller

B - Chain (2 used)

C - Adjusting Bolts (4 used)

For initial setting, adjust the roller baffle (A) position using chain (B) so that it just touches the top of the windrow.

• Set roller baffle (A) closer to the pickup reel in shorter, slippery crops.
• Set roller baffle (A) farther from the pickup reel in longer crops and crops that bind together.

Use adjusting bolts (C) to set the distance of the roller baffle to the pickup teeth.
