Adjust Roller Baffle

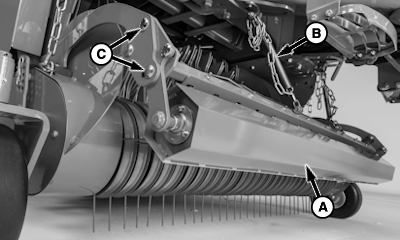

E77114-UN-09SEP14

A - Roller Baffle

B - Chain (2 used)

C - Carriage Bolts (4 used)

Roller Baffle Height

Position roller baffle (A) using chain (B) until it just touches top of windrow for optimum performance.

• Set roller baffle (A) closer to the pickup reel in shorter, slippery crops.
• Set roller baffle (A) farther from the pickup reel in longer crops and crops that bind together.

Roller Baffle Angle

Adjust roller baffle (A) angle for best crop flow performance. Use carriage bolts (C) to set angle.
