Prepare Baler for Transport

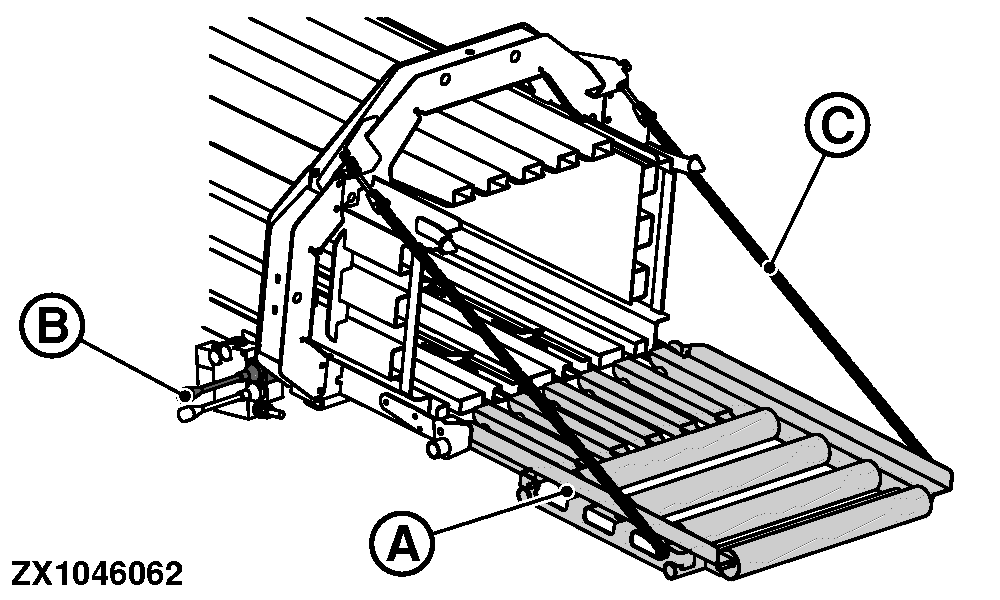

ZX1046062
ZX1046062-UN-14JAN12

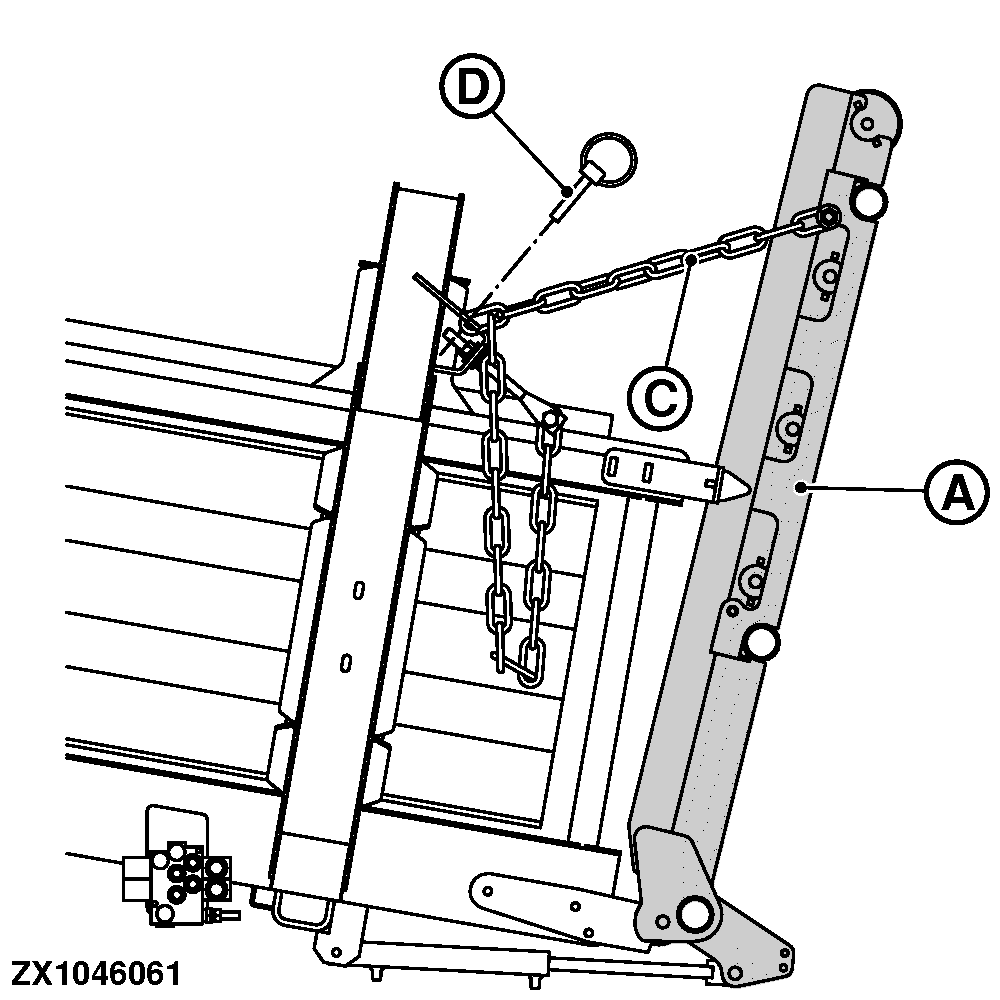

ZX1046061
ZX1046061-UN-03JAN12

A - Bale Chute

B - Lever

C - Chain

D - Lock Pin

Bring baler in transport position as follows:

  1. Lift pickup to maximum height.

    1. Close isolating valve on hydraulic hose at the tractor side.

    2. Secure the pickup in the highest position by holding chains tight in the retainer on each side of the machine.

  2. Eject last bale. Clearing bale chute helps to comply with local roadway and bridge weight restrictions.

    Refer to the Serial Number plate for the maximum laden weight of the machine.

  3. Fully lift and lock bale chute.

    Bale chute is heavy. To prevent personal injury to you or others, make sure that bystanders stand clear of chute when raising.

    1. Fold up bale chute (A). Use lever (B) to raise bale chute.

    2. Secure bale chute (A) with chains (C) on both sides.

    3. Secure chains (C) on both sides with lock pins (D).

    4. Remove chain slack by relieving pressure in the hydraulic circuit of chute lift cylinder.

      Make sure that the chains on each side of the bale chute are tight. The chains are designed to handle all the weight of the bale chute during transport, not the lift cylinder.

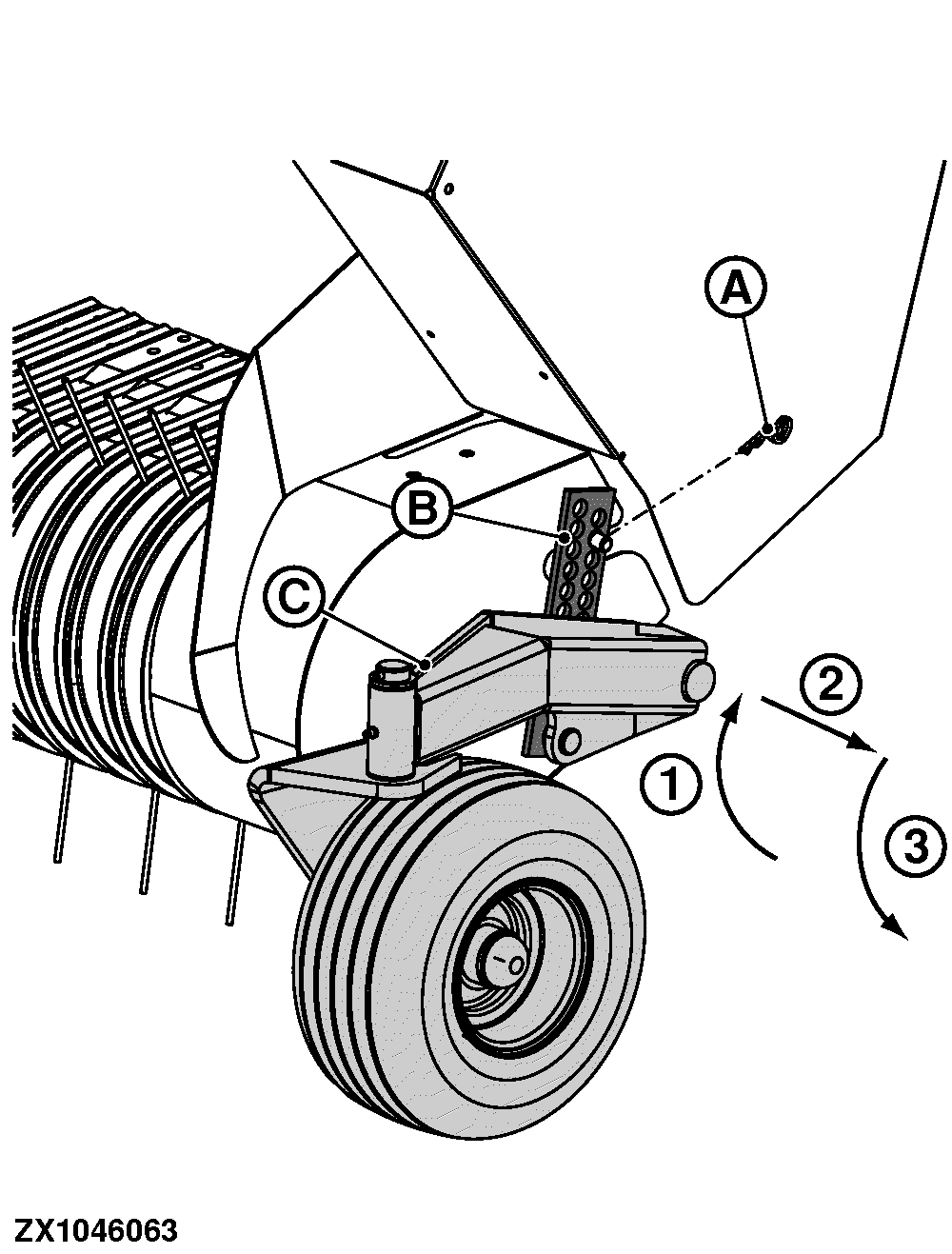

  4. ZX1046063
    ZX1046063-UN-03JAN12

    A - Spring Pin

    B - Bracket

    C - Gauge Wheel

    Pickup gauge wheels can be removed.

    1. Remove spring pin (A) from pin.

    2. Move bracket (B) forwards.

    3. Lift gauge wheel (C) until the notch is out of sleeve.

    4. Pull out gauge wheel (C).

    5. Put spring pin (A) back on pin.

    6. Place gauge wheel (C) inside press chamber.



  5. E77823
    E77823-UN-17DEC14

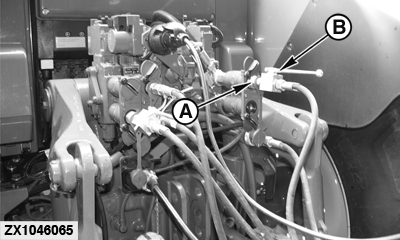

    ZX1046065
    ZX1046065-UN-03JAN12

    A - Hydraulic Hose—Green Ring

    B - Shutoff Valve

    Lock steered tandem axle.

    1. Connect hydraulic hose, marked green (A) to a single acting selective control valve on tractor or to “extended” receptacle of a double acting selective control valve. See Attach and Detach section of this Operator’s Manual.

    2. Open shutoff valve (B).

    3. Activate relevant selective control valve lever.

    4. Close shutoff valve (B).

    5. Release selective control valve lever.

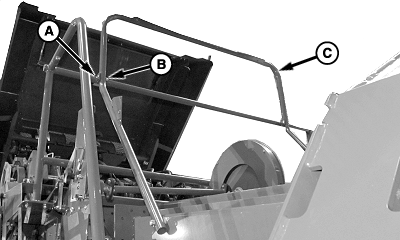

  6. E77825
    E77825-UN-18DEC14

    A - Carriage Bolt (2 used)

    B - Nut (2 used)

    C - Handrail

    When the baler is transported on a trailer, lower the platform handrail.

    1. Remove and retain carriage bolts (A) and nuts (B) on both sides of the machine.

    2. Lower the handrail (C).

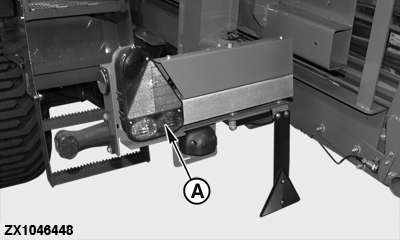

  7. ZX1046448
    ZX1046448-UN-17JAN12

    A - Rear Light Bracket

    Road lighting must be connected properly to tractor (see Attach and Detach section).

    When traveling on public roads, rear light brackets (A) on both sides must be swung out to comply with legal regulations.



  8. Braking system must be connected properly to tractor (see Attach and Detach section).

  9. Check tire pressure (see Prepare the Baler section).

  10. Check wheel nuts torque (see Prepare the Baler section).

  11. Remove crop residue and heavy dirt.

OUO6064,0001935-19-20161129
