As Required Service


Refill Automatic Greasing System Reservoir

E75766
E75766-UN-12MAY14

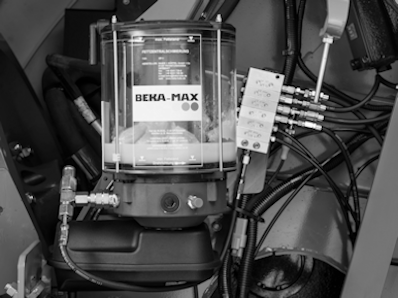

Cleanliness is a must when filling system.

Refill the grease reservoir as required. Use only grease specified in Lubricant and Capacities section.
Greasing ReservoirCapacity1.9 kg (4.2 lb)

E77389
E77389-UN-14OCT14

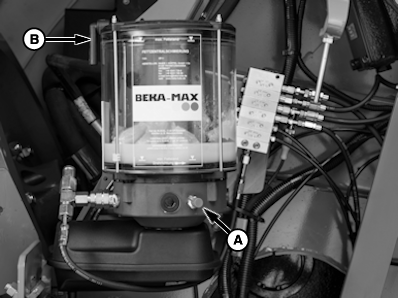

A - Filling Nipple

B - Vent Tube

Standard Filling Using Lubrication Nipple with Manual or Pneumatic Grease Gun

  1. Remove filling nipple (A) cover.

  2. Fill the system using a manual or pneumatic grease gun. Do not fill the reservoir beyond the maximum fullness level.

  3. Make sure that the vent tube (B) on outside of reservoir is not plugged.

  4. Dispose of all greasy cleaning rags according to local and national regulations.

E75768
E75768-UN-12MAY14

ZX207291
ZX207291-UN-08NOV13

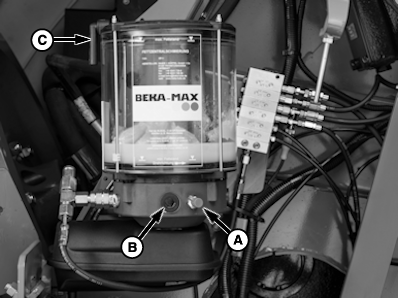

A - Filling Nipple

B - Filling Plug

C - Vent Tube

D - Filling Socket

E - Filling Socket

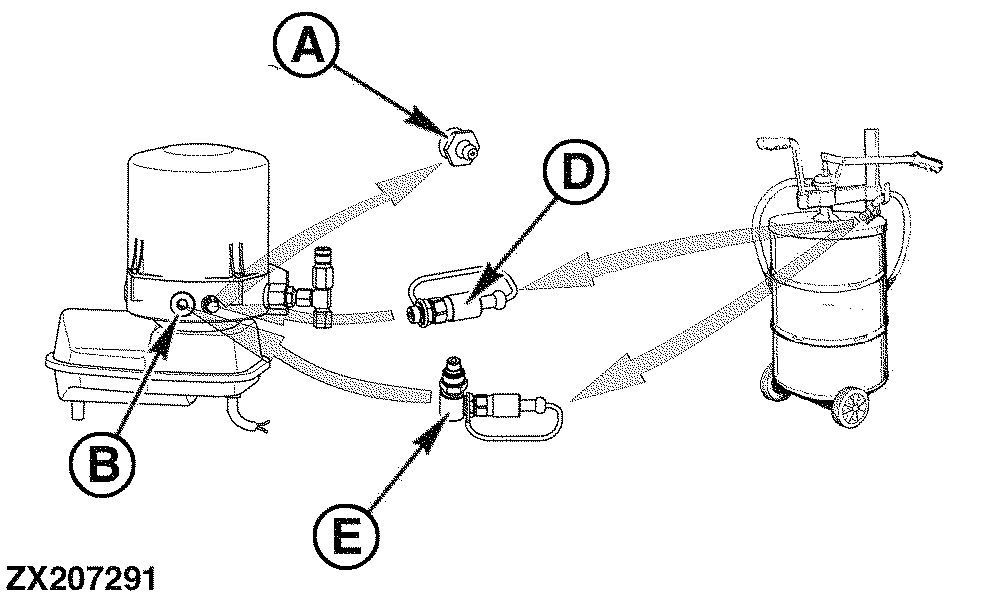

Filling Using Filling Socket and High-Flow Filling Press

  1. Remove filling nipple (A) and replace with filling socket (D) or remove filling plug (B) and replace with filling socket (E) for grease.

  2. Fill system using a high-flow filling press. Do not fill the reservoir beyond the maximum fullness level.

  3. Make sure that the vent tube (C) on outside of reservoir is not plugged.

  4. Dispose of all greasy cleaning rags according to local and national regulations.

E81734
E81734-UN-28OCT16

E77391
E77391-UN-14OCT14

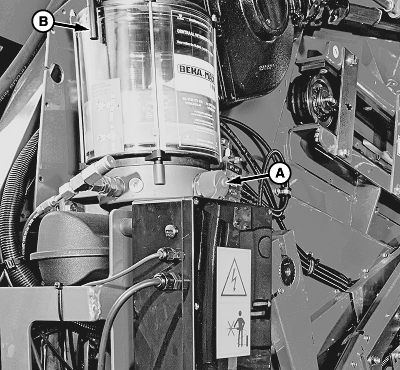

A - Filling Plug

B - Vent Tube

C - Straight Filling Joint

D - Quick Refill Kit

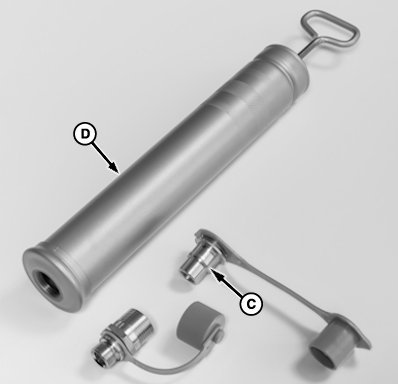

Filling Using a Quick Refill Kit

  1. Remove filling plug (A) and replace with a straight filling joint (C).

  2. Fill system using a quick refill kit (D). Do not fill the reservoir beyond the maximum fullness level.

  3. Make sure that the vent tube (B) on the outside of reservoir is not plugged.

  4. Dispose of all greasy cleaning rags according to local and national regulations.
