Work Lights and Service Lights

E77726-UN-18DEC14

E77729-UN-18DEC14

E77730-UN-18DEC14

Service Lights

The machine comes equipped standard with four LED service lights:

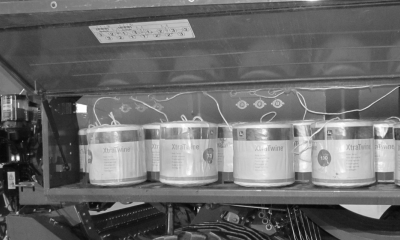

• One in each twine box, to illuminate twine rolls.

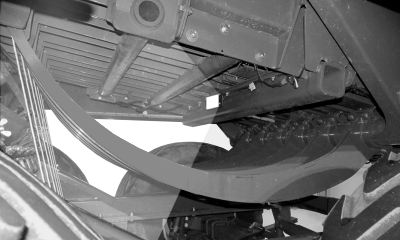

• One under bale chamber, to illuminate the needles.

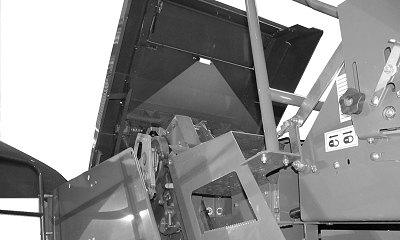

• One inside the knotter hood, to illuminate the knotters.

Work Lights

The machine can have the option of three LED work lights:

• One in the front on the left-hand side, to illuminate the pick-up.
• Two on rear handrail behind the knotter, to illuminate the close environment of the machine in the rear.

Switching Work and Service Lights On—Off

1.
   E77706-UN-18DEC14

   Activate Service Lights


   E77605-UN-18DEC14

   Deactivate Service Lights

   From baler application main page, select appropriate Service Light softkey to activate service work lights.

---

2. To deactivate service work lights, select appropriate Service Light softkey. There is a 15 A fuse in the main lead that supplies the switch box for the work lights and service lights [+].
