Adjust Precompression Chamber Density

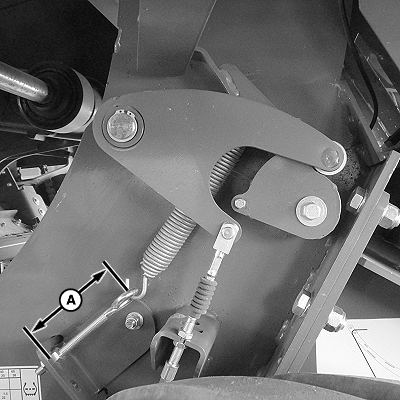

E75942-UN-15SEP14
A - Distance
Recommended density for precompression chamber is distance (A) on eyebolt.
Measuring Plate Eyebolt
Distance
120 mm (4.8 in)
OUO6064,000193A-19-20161028
