Adjust Hydraulic Brakes

Brake shoes must be replaced as soon as minimum lining thickness is detected.

E81742-UN-08NOV16

E72879-UN-21FEB14

E72880-UN-21FEB14

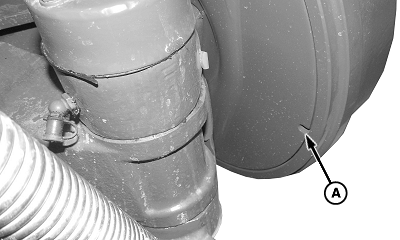

A - Inspection Hole
(2 used, per wheel)

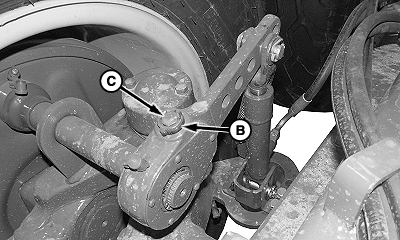

B - Lock

C - Adjustment Screw

Check and test brakes before heavy use, or every three months.

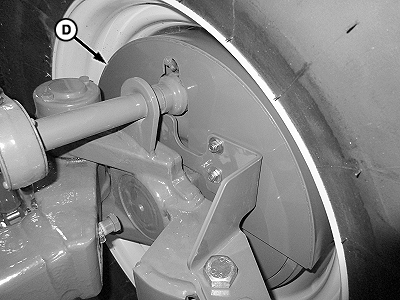

If necessary, remove shield (D) to access inspection holes (A).

Visually check brake lining wear and clearance between brake linings and drum at inspection holes (A) at both front and back of drum.

Adjust brakes when the hydraulic cylinder stroke reaches approximately 2/3 of maximum travel, indicating that the brake shoes need replaced. Check minimum thickness specification on the brake shoe lining. Replace brake shoes if necessary.

Brake Shoe Lining	Minimum Thickness	2 mm (0.079 in)

To adjust, push lock (B) IN and turn adjustment screw (C) on lever to adjust position of cam and lever.

Turn adjustment screw to move brake cam in a direction that removes slack.

Turn wheel until brakes engage while turning adjustment screw. Back off nut until the wheel begins to turn without interference.

Remove stands and jacks from machine.
