Adjust Lower Counter-Knife

1.

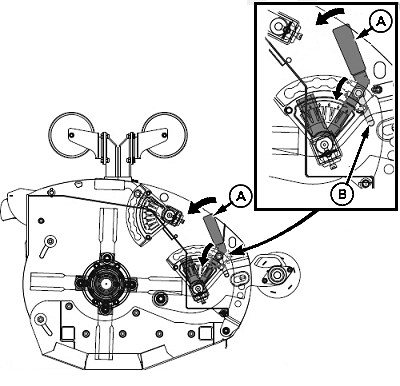

   E81729-UN-25OCT16

   A - Lever

   B - Lever

   Turn lever (B) counterclockwise until washer is released from guide.

   Moving lever (A) clockwise to position 1 allows longer shredding of material. Moving lever (A) counterclockwise to position 6 allows shorter shredding of material.

---




2. Turn lever (B) clockwise until washer is inside circular housing of guide.
