Adjust Front Roller

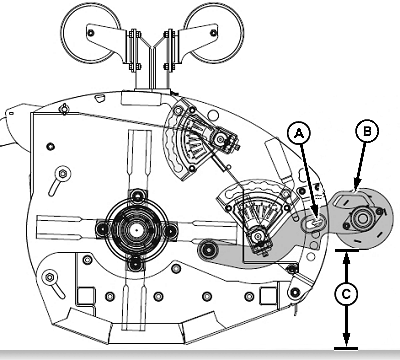

  1. E81730
    E81730-UN-25OCT16

    A - Pin

    B - Handle

    C - Height

    Remove pin (A).


  2. Position roller to desired height (C).

    Hole

    Height (C)

    1

    153 mm (6 in)

    2

    209 mm (8-7/32 in)

    3

    263 mm (10-11/32 in)

    4

    316 mm (12-14/32 in)

  3. Reinstall pin (A).

  4. Repeat steps on opposite side.

OUO6064,000197E-19-20161128
