Adjust Prechopper Height

1. To avoid unnecessary wearing of the prechopper skid shoes, do NOT set the prechopper height so that the skid shoes constantly touch the ground.


   E81495-UN-09JUN16


   E81731-UN-25OCT16

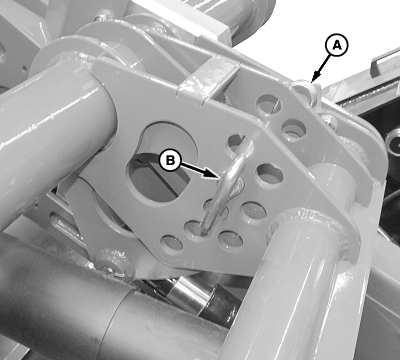

   A - Spring Pin

   B - Pin

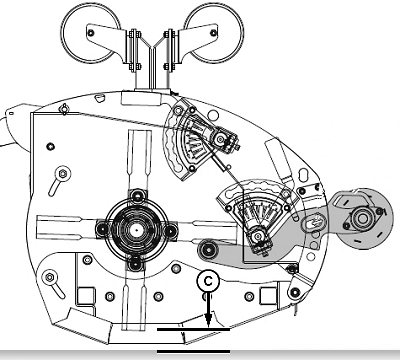

   C - 150 mm, Ground Clearance

   Fully Raise the prechopper.

---




2. Open the front door.

3. Remove spring pin (A) and pin (B).

   The position of pin (B) determines the height between the rotor knives and the ground.

4. A minimum ground clearance of 150 mm (C) from end of the rotor blade to ground is recommended.

   Place pin in the desired position.

   Rotor is closest to soil when pin (B) is in the upper hole.

5. Reinstall spring pin (A) and close the front door.
