Weighing System

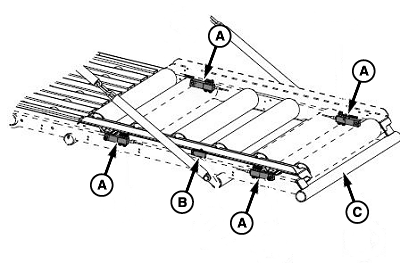

E81733-UN-27OCT16
A - Load Cell (4 used)
B - Acceleration Sensor
C - Weighing Platform
The weighing system measures the weight of the bale using four load cells (A). The acceleration sensor (B) measures the movement of the baler in the field. The load cells (A) and the acceleration sensor (B) together give the weight of the bale on the weighing platform (C) during baling. This weight is then shown on the display.|
