Weighing System Error Codes and Troubleshooting (If Equipped)

E81606
E81606-UN-05OCT16

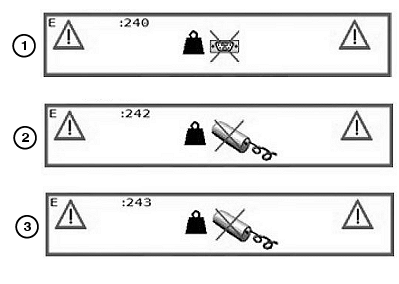

If one of the following error code banners appear on monitor, then stop the machine and correct the issue before baling is resumed.

■Problem

■Cause

■Remedy

(1) E:240—Communication Error

Connection with the weighing system lost or interrupted.

Check the connections and the cables of the weighing system. Repair and replace if necessary.

(2) E:242—Load Cell Test Failed

Load cell test failed:

After switching from basic to operating display.

After each detected bale drop.

Check the load cells by using the diagnostic pages, replace if necessary.

(3) E:243—G-Sensor Test Failed

Acceleration sensor test failed:

After switching from basic to operating display.

After each detected bale drop.

Check the accelerator sensor by using the diagnostic pages, replace if necessary.

OUO6064,000198A-19-20161128
