Adjust Tucker Finger Spring

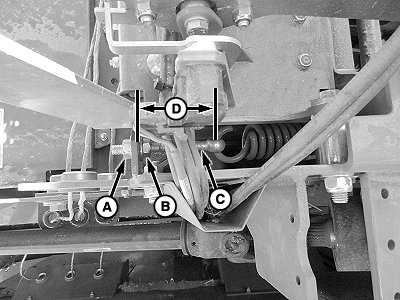

  1. E81738
    E81738-UN-31OCT16

    A - Nut

    B - Nut

    C - Eyebolt

    D - Distance, 50 mm (2 in)

    Loosen nuts (A and B).


  2. Move eyebolt (C) to a distance of 50 mm (2 in) (D), using the nuts to adjust.

  3. Tighten nuts.

OUO6064,000198C-19-20161128
