Adjust Prechopper Belt Tension (If Equipped)

1.
   E80297-UN-03NOV15

   Open Valve


   E80298-UN-03NOV15


   E80299-UN-03NOV15

   A - Lever

   B - Handle

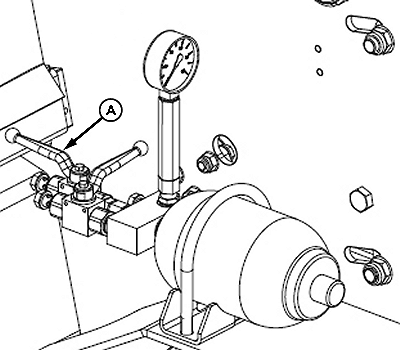

   Turn lever (A) to open position as shown.

---

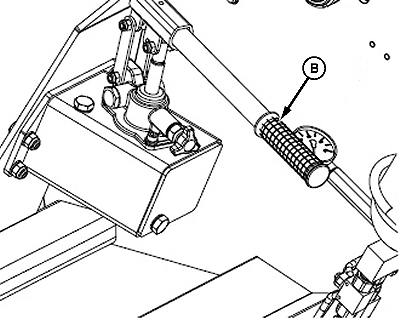

2. Pump up pressure to 40 ± 2 bar (580 ± 29 psi) using handle (B) on manometer.

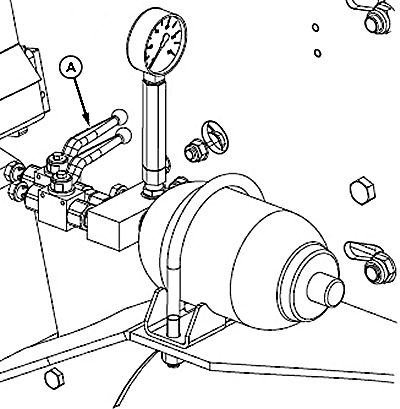

3. Turn lever (A) to closed position as shown.

4.
   E80300-UN-03NOV15


   E80301-UN-03NOV15

   A - Cover

   B - Cap Screw (3 used)

   C - Cover

   D - Elongation

   Remove and retain cap screws (B) and covers (A and C).

---

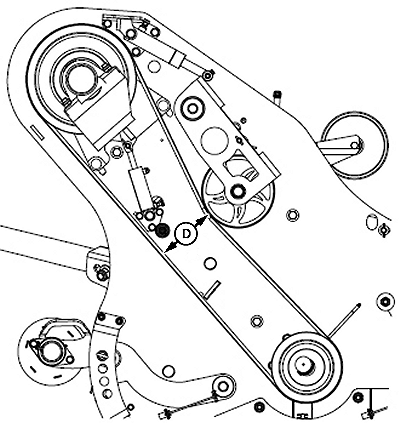

5. Check belt elongation (D) distance.

   Ensure that distance is bigger than 98 mm (3-27/32 in).

   Replace belt if distance is less than 98 mm (3-27/32 in). See next section for details.

6. Reinstall previously removed covers and cap screws.
