Adjust Prechopper Lifting Arms (If Equipped)

1.

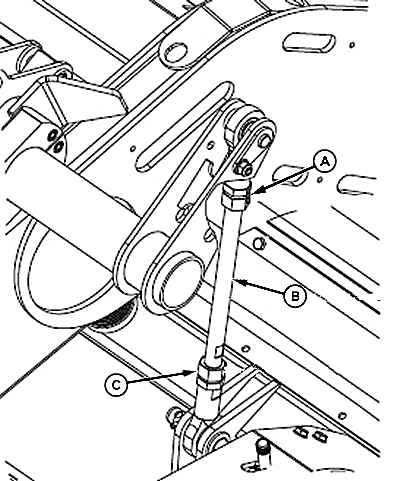

   E80477-UN-09NOV15

   A - Lock Nut (2 used)

   B - Lifting Rod

   C - Lock Nut (2 used)

   Adjustment is same for both sides.

   Loosen lock nuts (A and C).

---




2. Turn lifting rod (B) to lift or lower prechopper as required.

3. Tighten lock nuts (A and C).

4. Check adjustment.
