Open Doors and Blower Hood

Avoid injury when pulling down on tethered handle to close doors (B and C). Gull wing doors and front shield are spring loaded and designed to close at the end of the stroke. Personal injuries can occur.

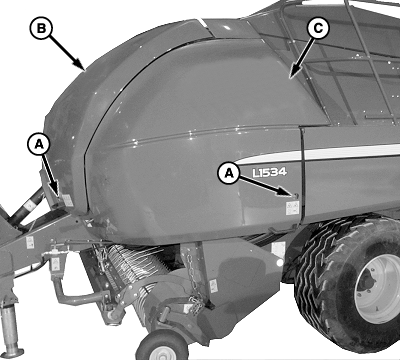

E77600-UN-18DEC14

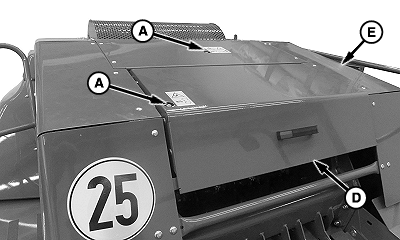

E80036-UN-01OCT15

A - Lock

B - Front Shield

C - Gull Wing Door (2 used)

D - Knotter Door

E - Blower Hood

Turn lock (A) to unlock front shield (B) and gull wing doors (C).

Turn lock (A) to unlock knotter door (D) and blower hood (E).

Pull up on handle to open doors, shield, and hood.

Use tethered handle to close gull wing doors (C) and front shield (B).
