Start of Each Season

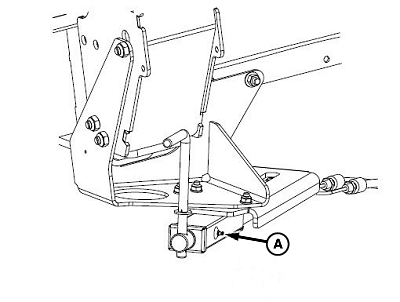

Lubricate Parking Brake
E83177-UN-05JUN17
A - Lubrication Fitting
Start of each season, lubricate the parking brake.
Parking brake has one lubrication fitting (A).

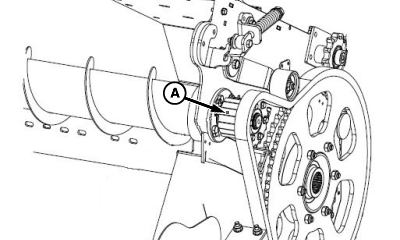

Lubricate Driven Crop Roll Overload Clutch—If Equipped
E81616-UN-07OCT16
A - Lubrication Fitting
Start of each season, lubricate the driven crop roll clutch.
Driven crop roll clutch has one lubrication fitting (A).

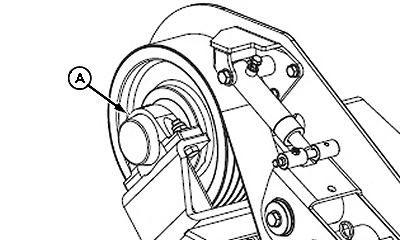

Lubricate Upper Pulley Bearing—If Equipped with Prechopper
E80491-UN-10NOV15
A - Grease Point

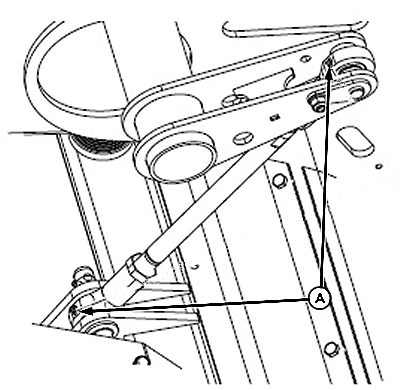

Lubricate with recommended grease at grease point (A).Lubricate Left and Right Lift Arm Bearings—If Equipped with Prechopper
E80554-UN-10NOV15
A - Grease Point
Lubricate with recommended grease at grease point (A).|
OUO6064,0001E01-19-20170605 |
