Daily

Check Prechopper Knives—If Equipped

1.

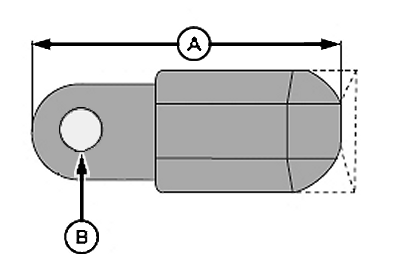

   E80291-UN-02NOV15

   A - Length

   B - Mounting Hole

   Check cutting tools before each use ensuring shredding quality, safety in use, and avoiding risk of damaging fixed elements. Replace damaged cutting tools.

   Check knife length (A).

   Length must exceed 220 mm (8-21/32 in).

---




2. Check mounting hole (B).

   Make sure that the ovality of mounting hole does not exceed 27 mm (1-2/32 in).

Check Prechopper Gear Case—If Equipped

1.

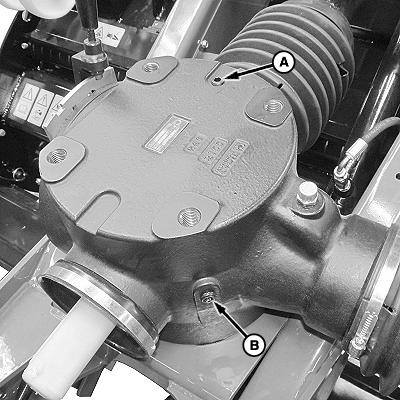

   E81427-UN-02JUN16

   A - Fill Plug

   B - Check Level Plug

   Remove check level plug (B), if oil comes out of gap, oil level is okay.

---




2. If no oil comes out, remove fill plug (A) and replenish oil until a little oil comes out of gap.

Check Length of Lifting Arms—If Equipped

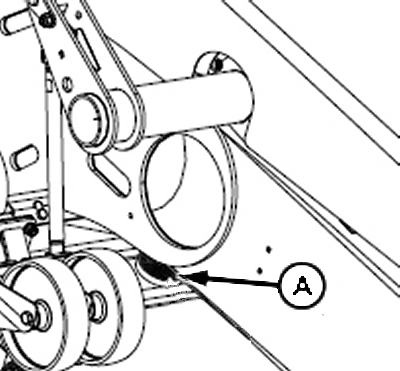

E80293-UN-02NOV15

Left-Hand Side

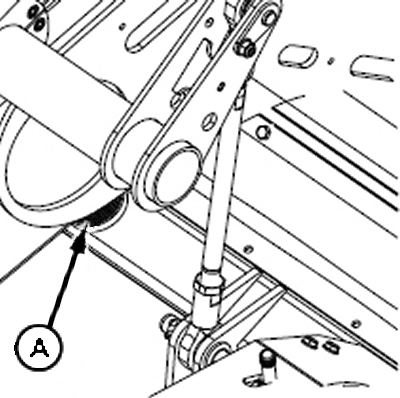

E80294-UN-02NOV15

Right-Hand Side

A - Rubber Buffers

The two rubber buffers (A) should touch the drawbar at the same time and be slightly pressed in.
