Every 4 Hours
Lubricate Rotor Bearing—If Equipped

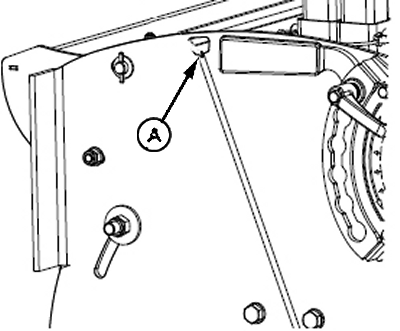

E80288-UN-02NOV15
Right-Hand Side

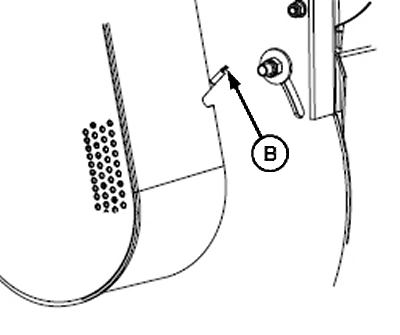

E80289-UN-02NOV15
Left-Hand Side
A - Grease Point
B - Grease Point
Lubricate right and left rotor bearings at grease points (A and B).|
OUO6064,0001E06-19-20170605 |
