Every 150 Hours or 6000 Bales Service

Check Knotter Trip Mechanism

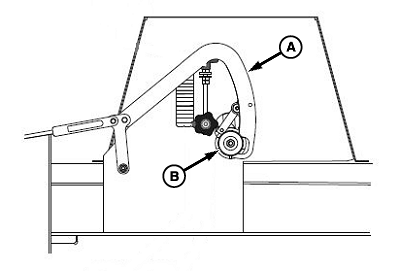

E81623-UN-14OCT16

A - Sector Arm

B - Roller

Every 150 hours of operation, check the knotter trip mechanism.

Distance between the sector arm (A) and roller (B) must be between 3—5 mm (0.11—0.19 in) when the trip lever is being reset and drops. (See Adjust Sector Arm in Service section.)

Check Measure Plate Cable

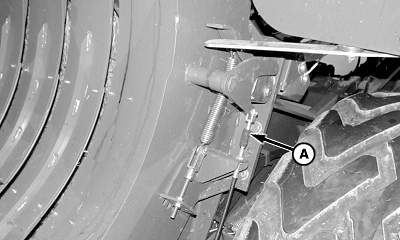

E77837-UN-18DEC14

A - Cable

Every 150 hours of operation, check both ends of the measure plate cable (A).

Check cable for wear, sticking, and seals out of place.

Check Needle Throw

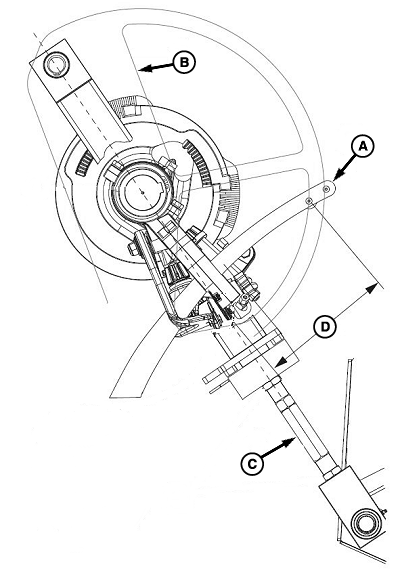

E83173-UN-02JUN17

A - Needle

B - Crank

C - Needle Drive Rod

D - Distance, Disk to Roller

To put needles (A) in the top position, proceed as follows:

• Switch on the knotting mechanism.
• In the rest position, crank (B) and rod (C) must be in line.
  Turn the flywheel by hand to the right until crank (B) is in the top position and in line with needle drive rod (C).
• Check distance (D) between the twine retainer disk and the center of the needle roller as shown.

  Disk to Roller	Distance	120—130 mm (4.72—5.12 in)

To adjust the needle throw (see Adjust Needle Throw in Service section).

Check Knotter Shaft Brake

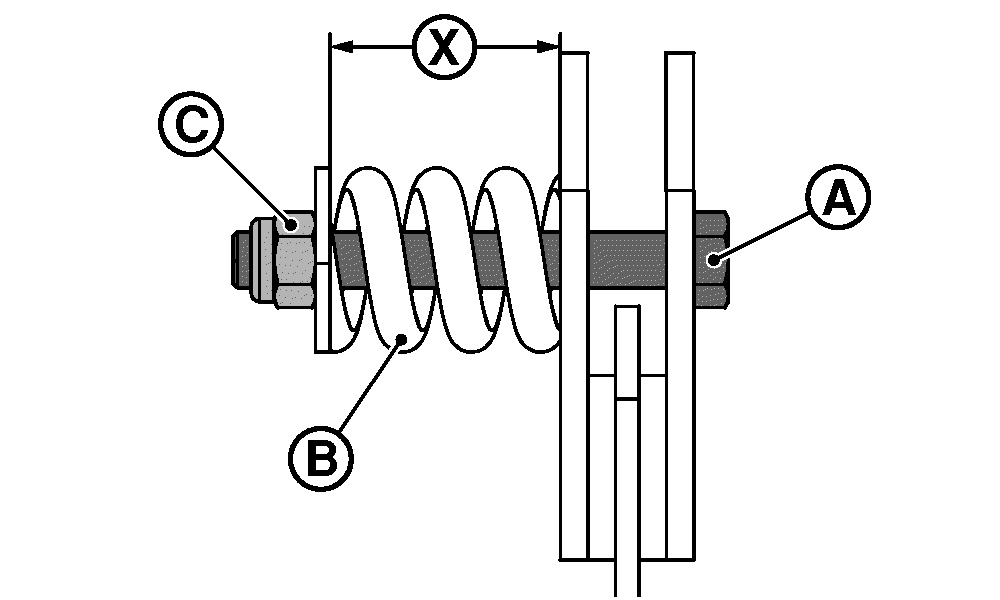

ZX1050759-UN-06AUG12

A - Cap Screw

B - Spring

C - Nut

X - 45 mm (1.75 in)

Every 150 hours of operation, check knotter shaft brake.

Check the spring tension regularly. Replace the brake linings as soon as they are worn. Never grease the brake rotor.

Adjust using cap screws (A) keeping springs (B) at equal lengths. (X) = 45 mm (1.75 in)

1. To adjust spring tension, loosen or tighten the nut (C).

2. To ensure that linings are parallel, use set bolts.

Check Twine Retainer Disk

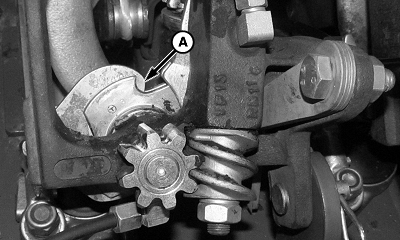

E77843-UN-18DEC14

A - Retainer Disk

Every 150 hours of operation, check twine retainer disk.

Check retainer disk (A) for wear and timing.

Lubricate Knotter Driveshaft

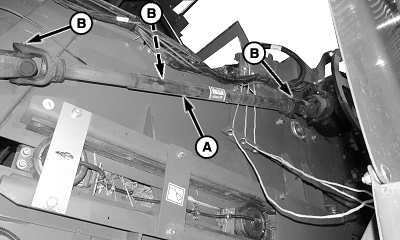

E77844-UN-18DEC14

Left-Hand Side

A - Knotter Driveshaft

B - Lubrication Fitting (3 used)

Every 150 hours of operation, lubricate knotter driveshaft.

Knotter driveshaft (A) has three lubrication fittings (B).

Lubricate with recommended grease.

Lubricate Shear Bolt Housing—If Equipped

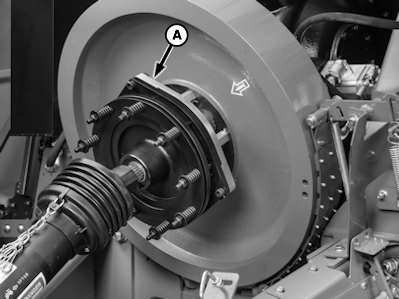

E76546-UN-17JUL14

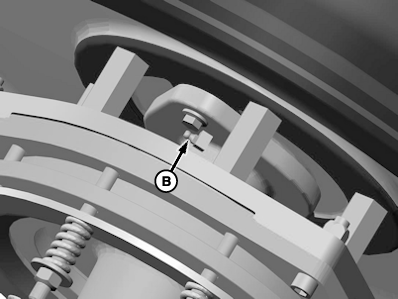

E76547-UN-12NOV14

A - Shear Bolt Clutch

B - Lubrication Fitting

Every 150 hours of operation, lubricate shear bolt housing.

L1533: The shear bolt clutch (A) protects main gear case. Shear bolt housing has one lubrication fitting (B).

Lubricate with recommended grease.

Lubricate Overload Clutch

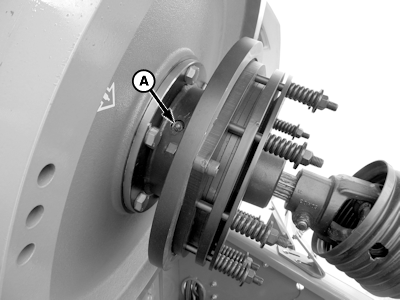

E75913-UN-19MAY14

A - Lubrication Fitting (3 used)

Every 150 hours of operation, lubricate overload clutch if it has been slipping.

Overload clutch has three lubrication fittings (A).

Lubricate with recommended grease.
