Every 10 Hours or 400 Bales Service

Check Rotor Chain Tension

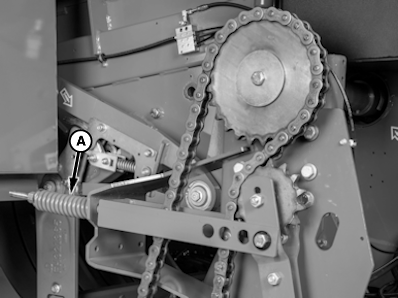

E75889-UN-16MAY14

Right-Hand Side (L1533)

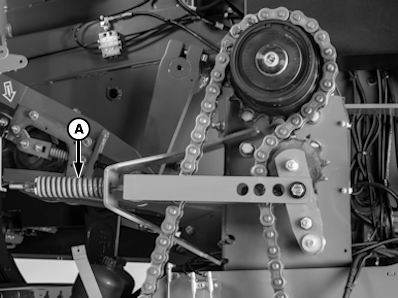

E75891-UN-16MAY14

Right-Hand Side (L1524 and L1534)

A - Chain Tension Spring

Every 10 hours of operation, check the tension on the rotor chain.

Make sure that the spring length (A) is within specification. Adjust as needed.

L1533	Length	154 mm (6.06 in)

L1524 and L1534	Length	160 mm (6.30 in)

Check Pickup Chain Tension

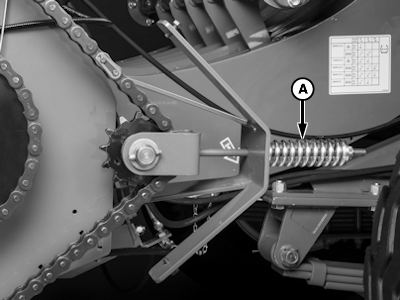

E75894-UN-16MAY14

Left-Hand Side (L1533)

A - Chain Tension Spring

Every 10 hours of operation, check the tension on the pickup chain.

L1533: Make sure that the spring length (A) is within specification. Adjust as needed.

Pickup Drive Chain Tension Spring	Length	135 mm (5.31 in)

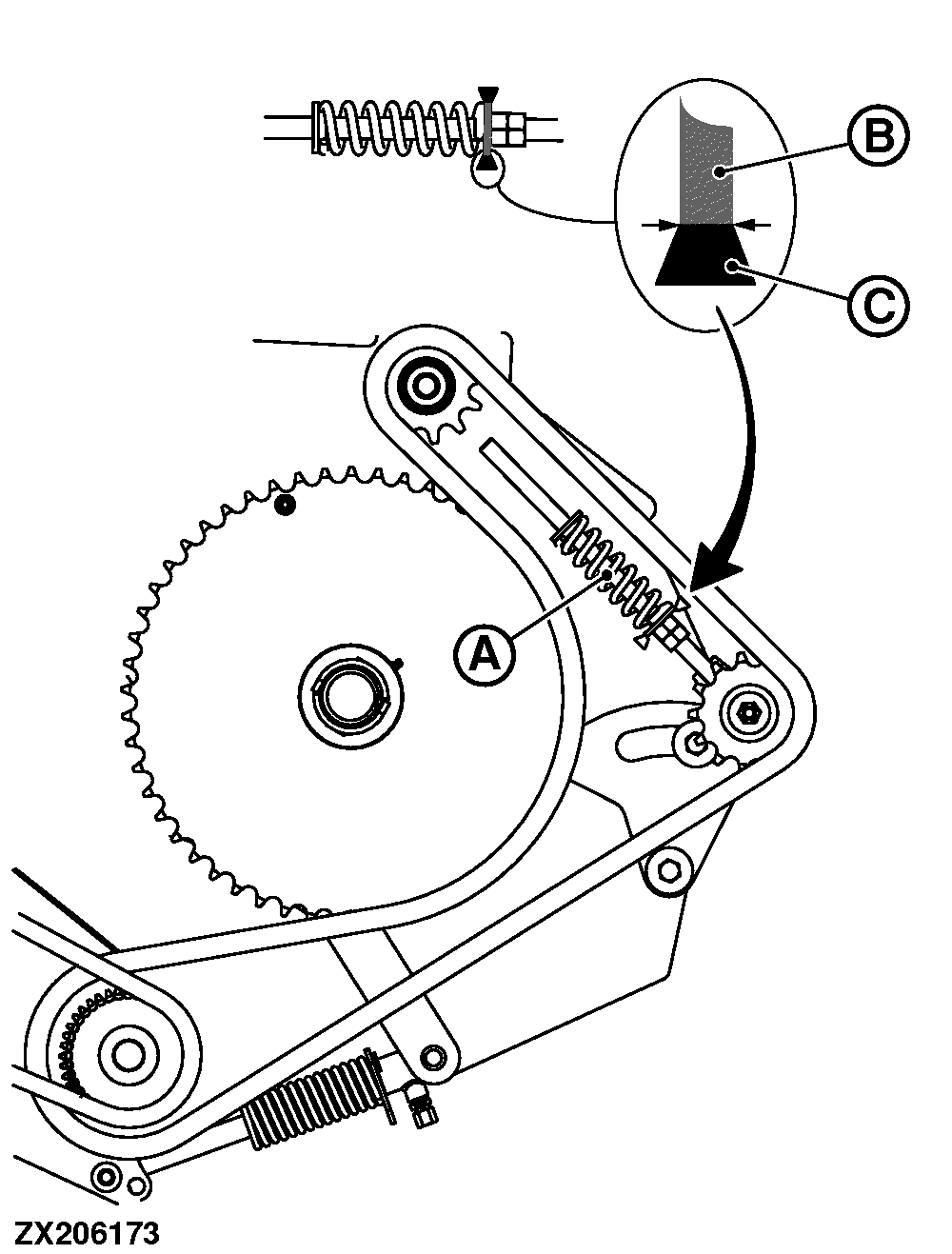

ZX206173-UN-03NOV13

Left-Hand Side (L1524 and L1534)

A - Chain Tension Spring

B - Washer

C - Marker

Pickup Drive Chain Tension Spring	Length	135 mm (5-5/16 in)

Spring (A) is correctly adjusted when the washer (B) is aligned with the inside of marker (C) as illustrated.

Lubricate Pickup Freewheel Clutch

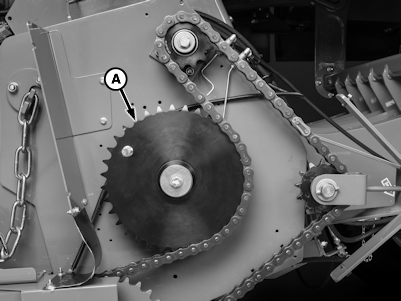

E75774-UN-16MAY14

Left-Hand Side (L1533)

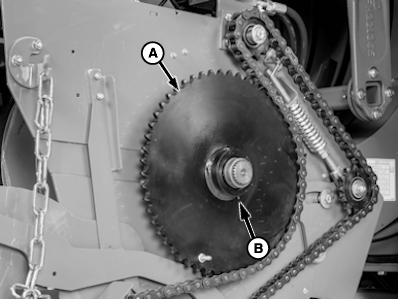

E75869-UN-16MAY14

Left-Hand Side (L1524 and L1534)

A - Pickup Freewheel Clutch

B - Lubrication Fitting

Every 10 hours of operation, lubricate pickup freewheel clutch.

Pickup freewheel clutch (A) has one lubrication fitting (B).

Lubricate with recommended grease.

Lubricate Pickup Cam Clutch

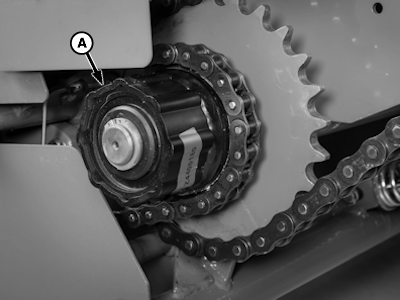

E75870-UN-16MAY14

Left-Hand Side (L1533)

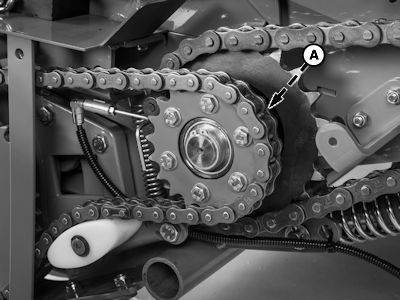

E77392-UN-14OCT14

Left-Hand Side (L1524 and L1534)

A - Pickup Slip Clutch

Every 10 hours of operation, lubricate pickup slip clutch if it has been slipping.

Pickup slip clutch (A) has one lubrication fitting. Lubricate with recommended grease.

Lubricate Front PTO Shaft and Protection Tubes

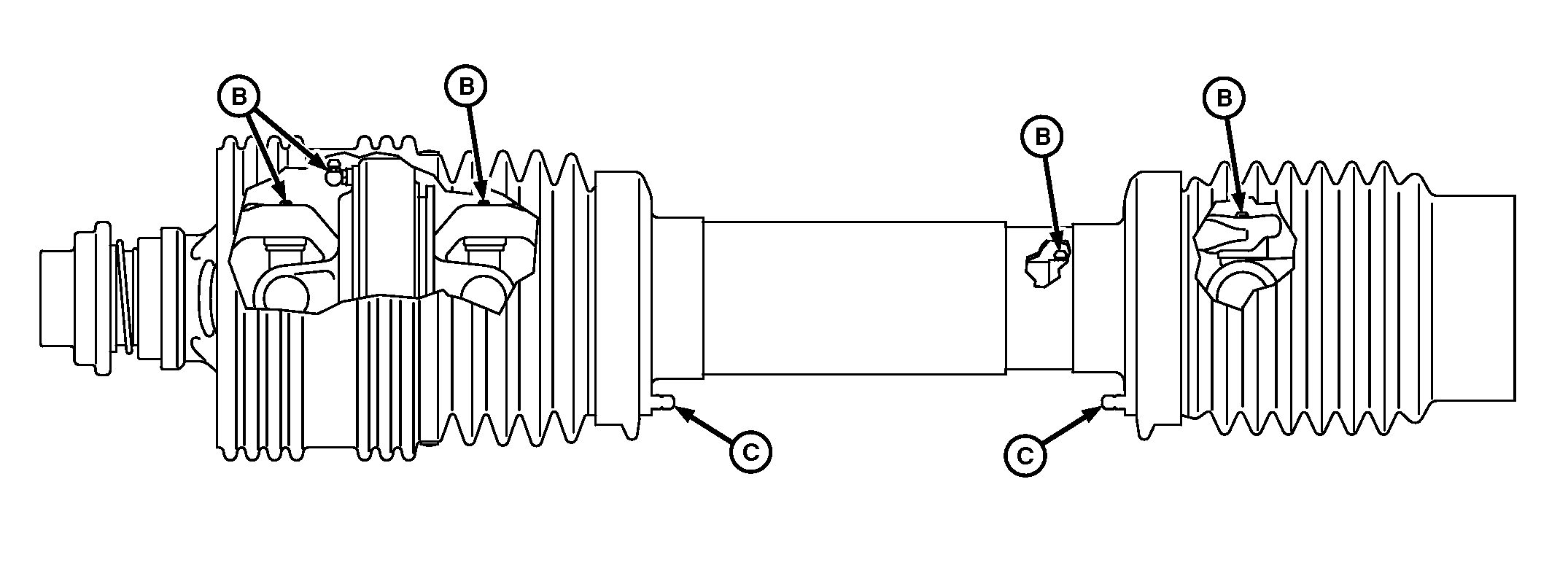

E81725-UN-23NOV16

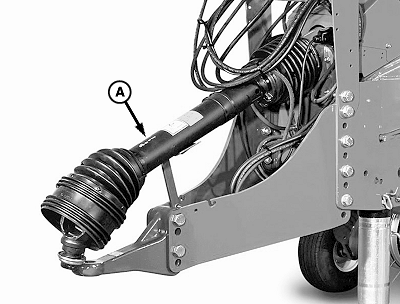

E81724-UN-24OCT16

A - PTO Shaft

B - Lubrication Fitting (5 used)

C - Lubrication Fitting (2 used)

Every 10 hours of operation, lubricate front PTO shaft and protection tubes.

Front PTO shaft (A) is equipped with five lubrication fittings (B).

Front PTO protection tubes are equipped with two lubrication fittings (C).

Lubricate with recommended grease.

Lubricate Rear PTO Shaft and Protection Tubes

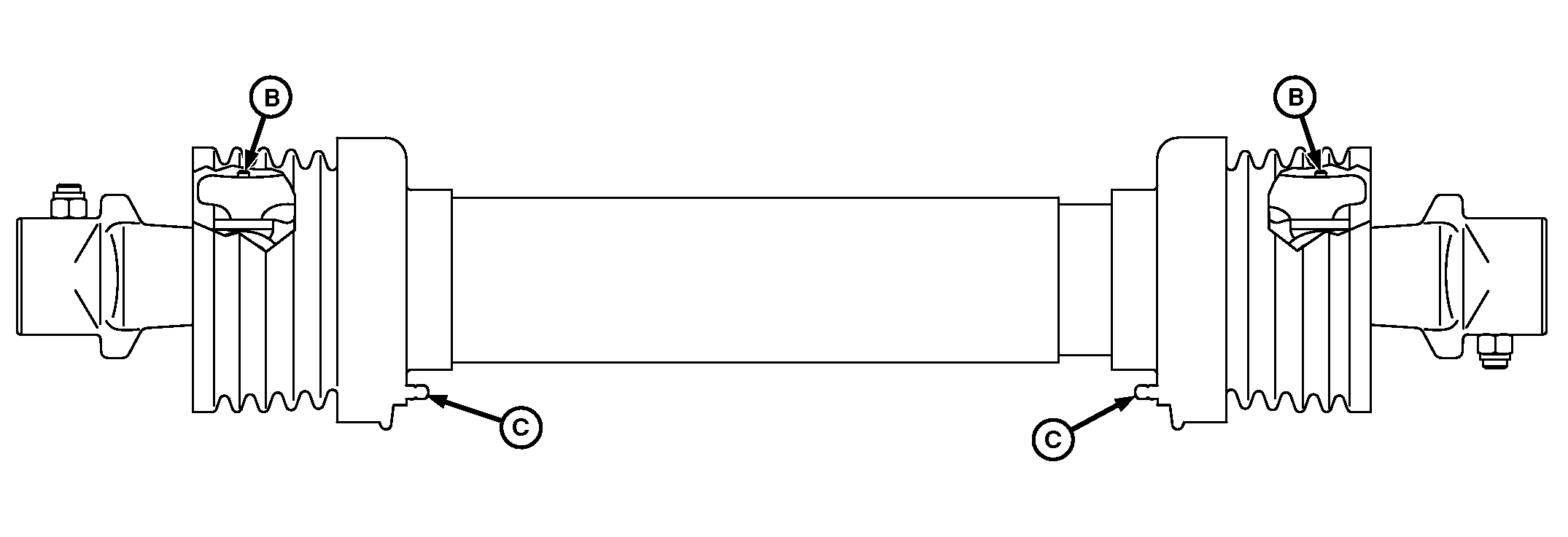

E81735-UN-23NOV16

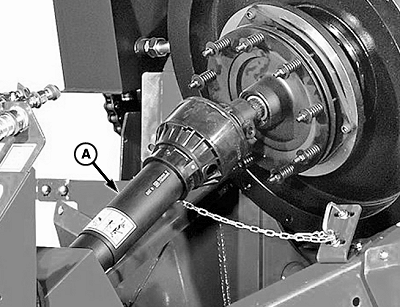

E81736-UN-31OCT16

A - PTO Shaft

B - Lubrication Fitting (2 used)

C - Lubrication Fitting (2 used)

Every 10 hours of operation, lubricate rear PTO shaft and protection tubes.

Rear PTO shaft (A) is equipped with two lubrication fittings (B).

Rear PTO protection tubes are equipped with two lubrication fittings (C).

Lubricate with recommended grease.

Lubricate Feeder Fork

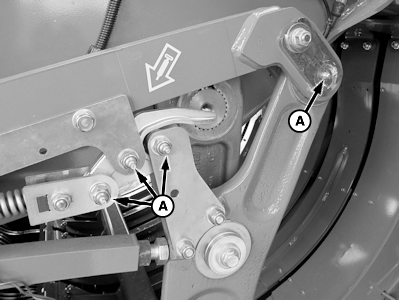

E76533-UN-16JUL14

Left-Hand Side

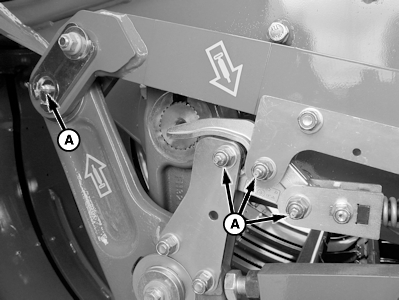

E76534-UN-16JUL14

Right-Hand Side

A - Lubrication Fitting (4 per side)

Every 10 hours of operation, lubricate feeder fork.

Feeder fork has four lubrication fittings (A) per side.

Lubricate Main Packer Shaft Bearing—Left-Hand Side

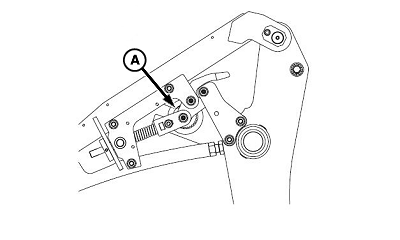

E83175-UN-05JUN17

Left-Hand Side

A - Lubrication Fitting

Every 10 hours of operation, lubricate main packer shaft bearing.

Main packer shaft bearing has one lubrication fittings (A) on the left-hand side.

Lubricate Driven Crop Roll Bearings (If Equipped)

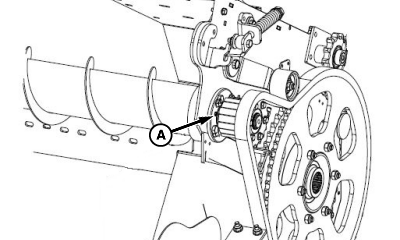

E81615-UN-07OCT16

Both Sides

A - Lubrication Fitting (1 per side)

Every 10 hours of operation, lubricate driven crop roll bearings.

Driven crop roll has two lubrication fittings (A), one per side.

Check Driven Crop Roll Chain (If Equipped)

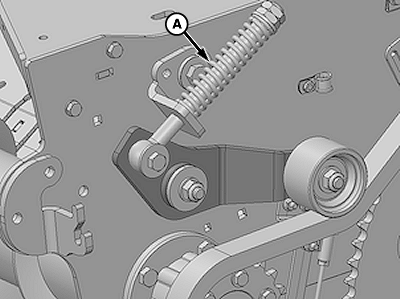

E81745-UN-29NOV16

A - Tension Spring Length

Every 10 hours of operation, check driven crop roll chain.

Make sure that driven spring length (A) is within specification. Adjust as needed.

Spring	Length	120 mm (4.72 in)
