Operate Electrical Binding (If Equipped)

ZX1046425
ZX1046425-UN-11JAN12

ZX1046067
ZX1046067-UN-11JAN12

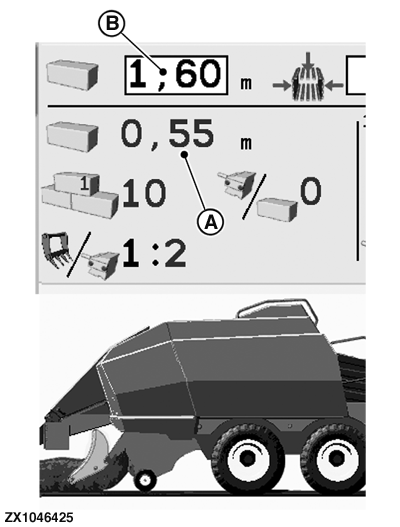

A - Actual bale length

B - Desired bale length

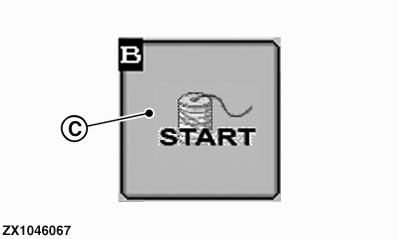

C - Electric binding start button

To start the electric binding the following conditions must be met:

  • Knotter hood closed.
  • Knotter hood sensor active (see Service section).
  • Fan switch reading set to 1 (see readout functions on Diagnostic Menu Page 1 in Electronic Control System section).
  • PTO running above 100 rpm.
  • Bale chamber pressure setting above 5 bar (5 000 kPa)(72.5 psi).
  • Electric binding sensor reading set to 1 (see readout functions on Diagnostic Menu Page 1 in Electronic Control System section)..

When all conditions are met and actual bale length (A) as reached the desired bale length setting (B), then the electric binding starts.

A double beep is emitted when binding cycle has started.

If necessary, and if all necessary conditions are met, the electric binding can be started immediately. With the display under Operating Mode, press the Electric Binding Start button (C) to trip a tying cycle immediately (to put twine in the knotters (first time), or to finish the last bale of the field).

If necessary, the electrical binding can be deactivated. Contact your John Deere dealer.
