Operate Last Bale Ejector

ZX1046443
ZX1046443-UN-14JAN12

ZX1046442
ZX1046442-UN-14JAN12

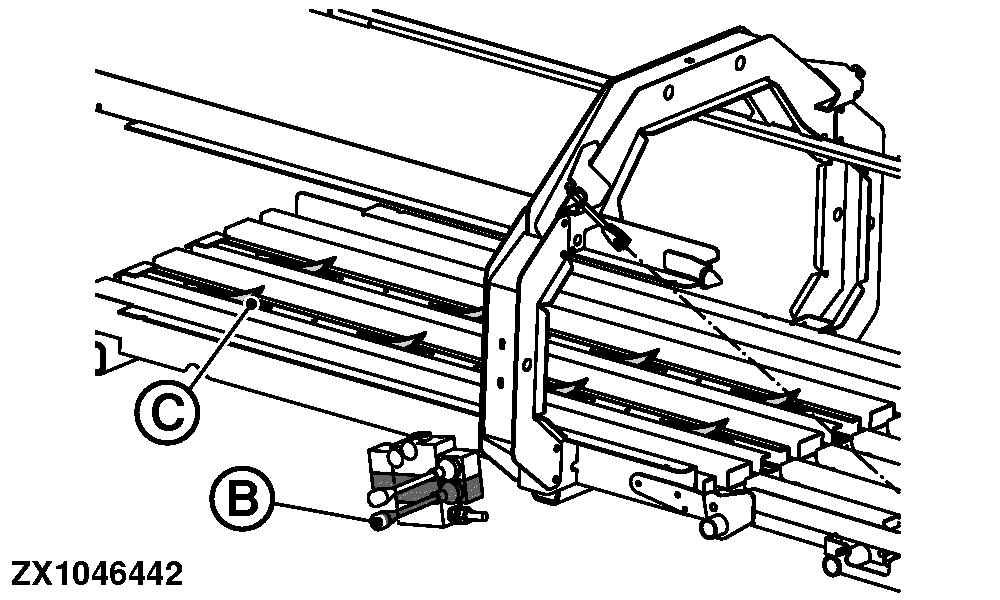

A - Set Pressure to Zero Button

B - Lever

C - Hooks

When finished, eject the last bale. Proceed as follows:

  1. Engage the PTO and run at 1000 rpm.

  2. Start tying process.

  3. Decrease PTO speed to 500 rpm.

  4. Press the set pressure to zero button (A) twice to relieve the press chamber guide cylinder hydraulic pressure.

  5. Disengage PTO.

    Wait until top and side press chamber guides have been moved out.

  6. Activate the relevant tractor Selective Control Valve (see Attaching and Detaching section).

  7. Alternately move the lower lever (B) back and forth to eject the bale.

    Move the bale ejector hooks (C) to their most forward position every stroke.

  8. After the bale ejection, place the ejector hooks (C) in their most forward position.

  9. If necessary, fold up the bale chute (see Operate Bale Chute in this section).
