Adjust Friction Clutch

1.

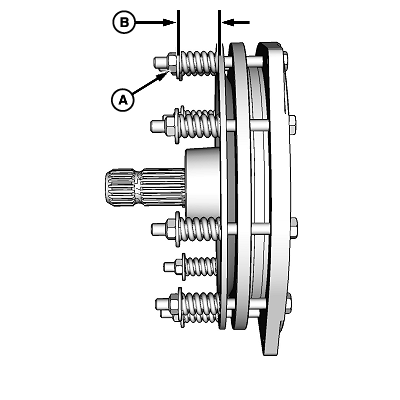

   E76993-UN-19AUG14

   A - Nut (9 used)

   B - Distance

   Loosen nuts (A).

---




2. Rotate friction clutch by hand.

   Repair or replace friction clutch when it does not rotate freely or is damaged.

3. Adjust nuts (A) until specified distance (B) is reached.

   Friction Clutch Washers-to-Plate	Distance	42.8 mm (1.68 in.)
