Adjust Steering Lock Cylinders

1. Cylinder arm must be kept clean of debris.

   Steering locks must be engaged when using public roadways and backing machine.

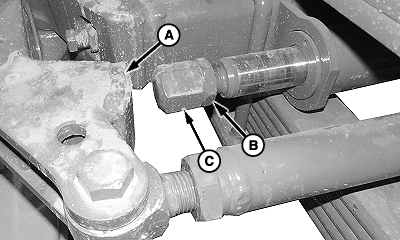

   E73123-UN-26FEB14

   A - Stop (2 used)

   B - Locking Nut (2 used)

   C - Outer Hex Nut (2 used)

   Align steering axle wheels.

---




2. Loosen locking nuts (B) and move outer hex nuts (C) as far in a possible.

3. Without operating steering lock cylinders, align steering axle with machine on a smooth, level surface.

4. Add hydraulic pressure to cylinders and extend rods and maintain pressure.

5. Move outer hex nut (C) out until it contacts stops (A) without adding force.

6. Tighten locking nuts (B) against outer hex nuts (C).

7. Recheck wheel alignment.
