Adjust Pickup Height

  1. Operating pickup too close to ground can cause excessive tooth breakage.

    E77106
    E77106-UN-08SEP14

    E77107
    E77107-UN-08SEP14

    E77108
    E77108-UN-08SEP14

    A - Selector Valve

    B - Ball Valve

    C - Lever

    D - Spring Pin (2 used)

    E - Bracket (2 used)

    F - Gauge Wheel (2 used)

    G - Pickup Teeth

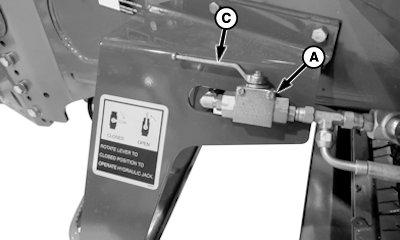

    Connect hydraulic hose of pickup and jack stand selector valve (A) to tractor SCV.

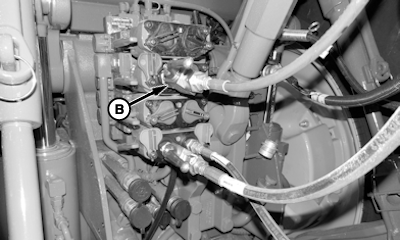

  2. Open ball valve (B) at end of hose near tractor.

  3. Rotate selector valve lever (C) to open position as shown.

  4. Fully raise pickup.

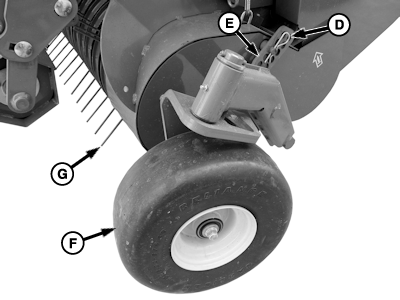

  5. Remove spring pin (D).

  6. Move bracket (E) to raise or lower gauge wheel (F) at desired position.

  7. Install spring pin (D).

  8. Repeat Steps 5—7 on opposite side of baler.

  9. Lower pickup and check that tip of pickup teeth (G) are near recommended height of 20—30 mm (0.78—1.18 in.)1 from ground.

  10. If necessary, repeat Steps 4—7 until desired setting is obtained.

1 Dimension of 20—30 mm (0.78—1.18 in.) is a recommendation since correct value depends on soil and crop conditions.

SF04007,0000A10-19-20160104
