Adjust Knife Slot Adjustment—15-Knife Precutter

E80025-UN-28SEP15

E80026-UN-28SEP15

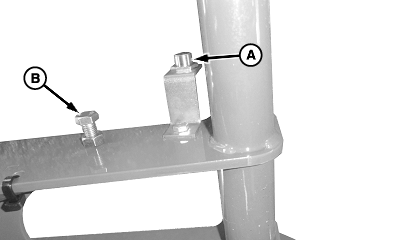

A - Sensor

B - Cap Screw

C - Knife (up to 15 used)

1. Avoid damage to sensor. Fully loosen sensor on bracket and back off from knife drawer completely.

   Loosen hardware on cap screw (B) and sensor (A).

2. While pushing knife drawer inward against head of cap screw (B), adjust cap screw depth until the desired setting is reached.

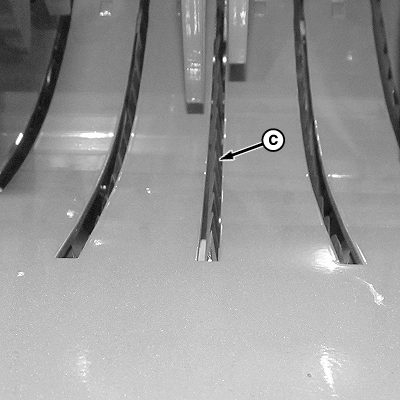

3. Verify all knives (C) have equal distance from sides of slots in floor as shown.

4. Tighten hardware on cap screw (B).

5. Adjust end of sensor gap to within specification.

   Knives Position Sensor-to-Target	Gap	2—4 mm (0.079—0.157 in)

6. Tighten hardware for sensor (A).
