Adjust Knife Slot Alignment—23-Knife Precutter

1.
   E71934-UN-03JAN14


   E71935-UN-29OCT13


   E71981-UN-29OCT13

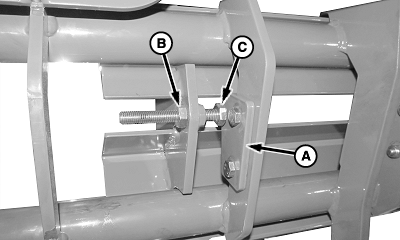

   A - Strike Plate

   B - Nut

   C - Adjust Cap Screw

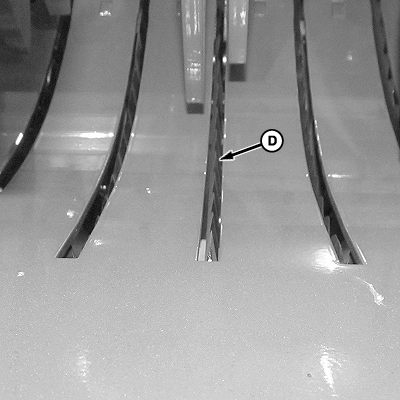

   D - Knife

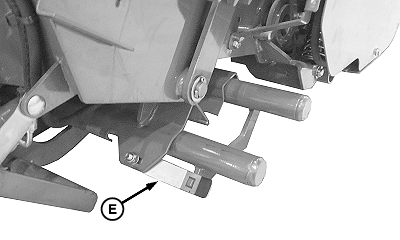

   E - Latch

   Loosen nut (B).

---




2. While pushing knife drawer inward against strike plate (A), adjust cap screw (C) until desired setting is reached.

3. Verify all knives (D) have equal distance from sides of slots in floor.

4. Tighten nut (B).

5. Adjust latch (E) if necessary.

   • Loosen lock nut
   • Push drawer toward machine, against strike plate
   • Align latch with hole
   • Tighten lock nut
