Adjust Locking Pin

Locking pin is disengaged from hook when:

• 1:1 locking lever is engaged and locked.
• When measuring plates are pressed out of precompression chamber after predetermined density is reached.

1.

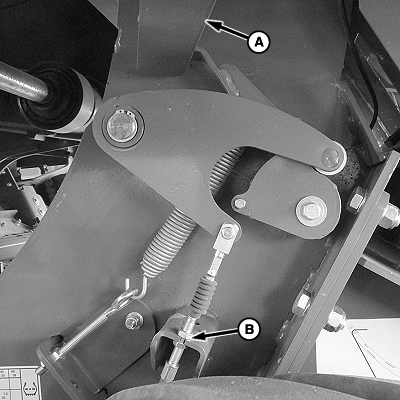

   E76431-UN-15SEP14

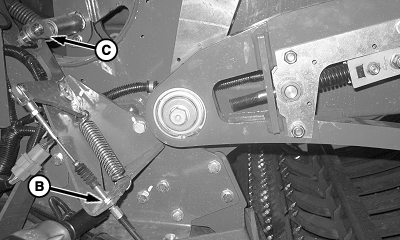

   E76432-UN-16JUL14

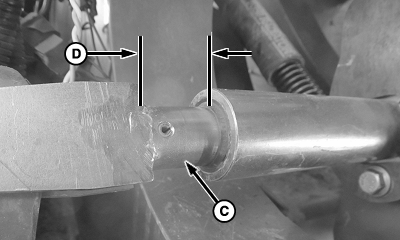

   E76433-UN-16JUL14

   A - 1:1 Locking Lever

   B - Nuts (4 used)

   C - Locking Pin

   D - Distance

   Engage 1:1 locking lever (A) and place into locked position.

---




2. Verify specified distance (D) on locking pin (C).

   Locking Pin	Distance	34 mm (1.33 in.)

3. If locking pin is not within specification, adjust cable using nuts (B) until specification is obtained.

4. Tighten nuts (B).

5. Disengage 1:1 locking lever.

6. Run machine and verify smooth movement between hook and pin.
