Adjust Roller Scraper

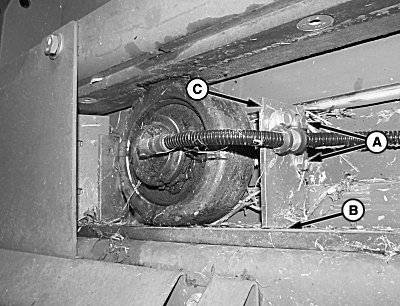

E77747
E77747-UN-19DEC14

A - Lock Nuts (2 used)

B - Distance

C - Scraper

Distance (B) must be within specification through entire plunger stroke for all six scrapers (C).

  1. Loosen lock nuts (A).

  2. Adjust scraper (C) to lower rail until within specification.
    Plunger Roller Scraper Plate-to-Lower RailDistance0.1—0.3 mm (0.004—0.012 in.)

  3. Tighten lock nuts (A).

SF04007,0000A1C-19-20160104
