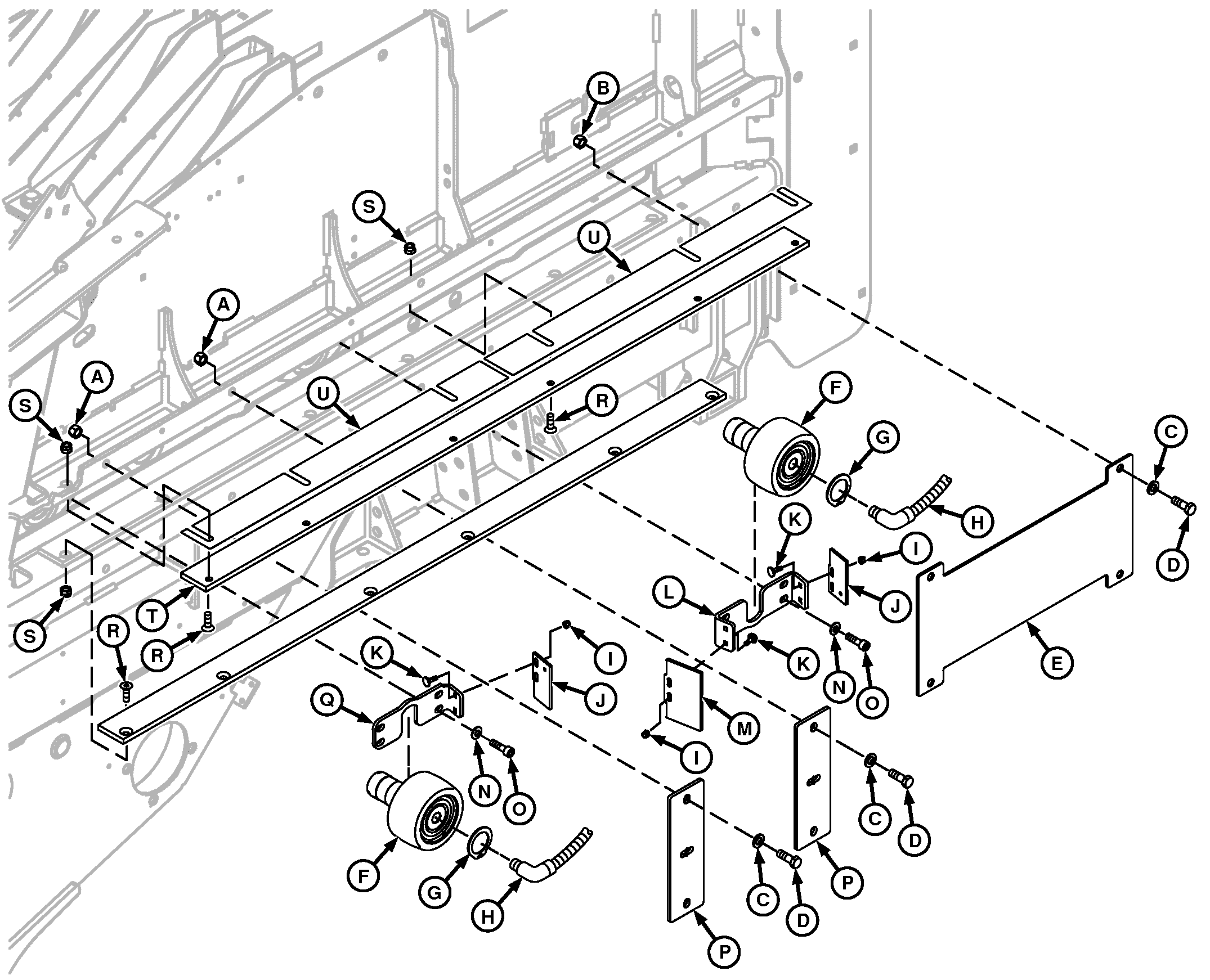

Plunger Rollers, Scrapers, and Track Exploded View

E77732-UN-17DEC14

Left Side Shown

A - Nuts (4 used)

B - Lock Nut (4 used)

C - Washer (8 used)

D - Nut (4 used)

E - Plate

F - Rollers (2 used)

G - Snap Rings (2 used)

H - Grease Lines (2 used)

I - Lock Nuts (6 used)

J - Scraper (2 used)

K - Carriage Bolt (6 used)

L - Rear Scraper Support

M - Plate

N - Spring Washer (8 used)

O - Socket Head Cap Screws (8 used)

P - Roller Alignment Strips (2 used)

Q - Front Scraper Support

R - Countersunk Socket Head Screw (12 used)

S - Lock Nuts (12 used)

T - Rail (2 used)

U - Shims (as required)
