Adjust Bale Ejector

E72772-UN-29JAN15

E72773-UN-29JAN15

E72774-UN-12FEB14

E72775-UN-11NOV14

A - Carriage Bolt (4 used)

B - Pin

C - Hook Plate

D - Adjustment Screw

E - Lock Nut

F - Ramp Plate

G - Cap Screw (2 used)

Adjust Hook-to-Pin

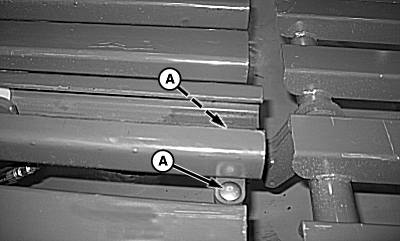

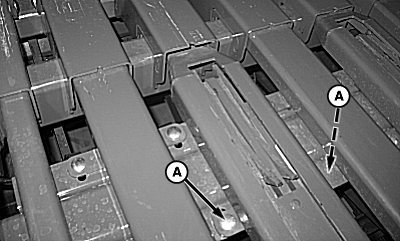

• Loosen carriage bolts (A) on bale floor tube.
• Loosen lock nut (E) and adjustment screw (D).

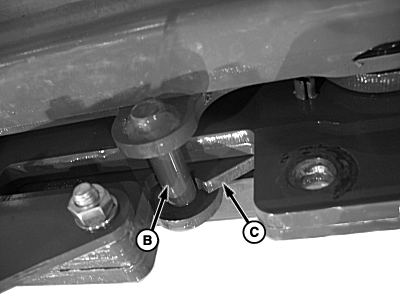

• Adjust ejector frame until hook of hook plate (C) is positioned on pin (B) as shown.
• Tighten carriage bolts (A).
• Turn adjustment bolt (D) until it slightly touches stop section of hook plate (C). Tighten lock nut (E).

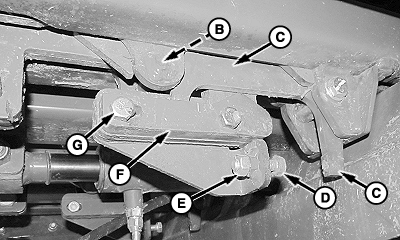

Adjust Ramp Plate-to-Hook Plate

• Extend bale ejector cylinder and watch ramp plate (F) interact with hook plate (C) as ejector slides rearward.
• Top of ramp plate (F) must contact and raise hook off pin (B) before cylinder begins pushing ejector rearward.
• Loosen cap screws (G) and adjust ramp plate (F) until hook lifts before movement of pin (B).
• Tighten cap screws (G) when ramp plate is at desired setting.
