Bleed Hydraulic Brake System

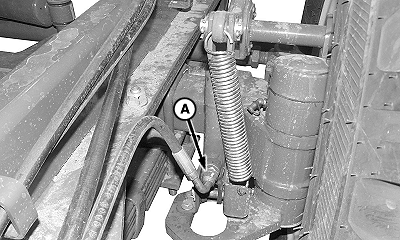

E72848-UN-28FEB14
A - Coupling
The brake circuit is a single acting system connected by a hose to the tractor with a quick coupler hose. Bleed system of air as follows:- Loosen coupling (A) at brake cylinder one turn
- Push tractor brake pedal gently
- Repeat until no more air escapes coupling
- Tighten coupling at brake cylinder
|
SF04007,0000A26-19-20160104 |
